Iscar

5502467

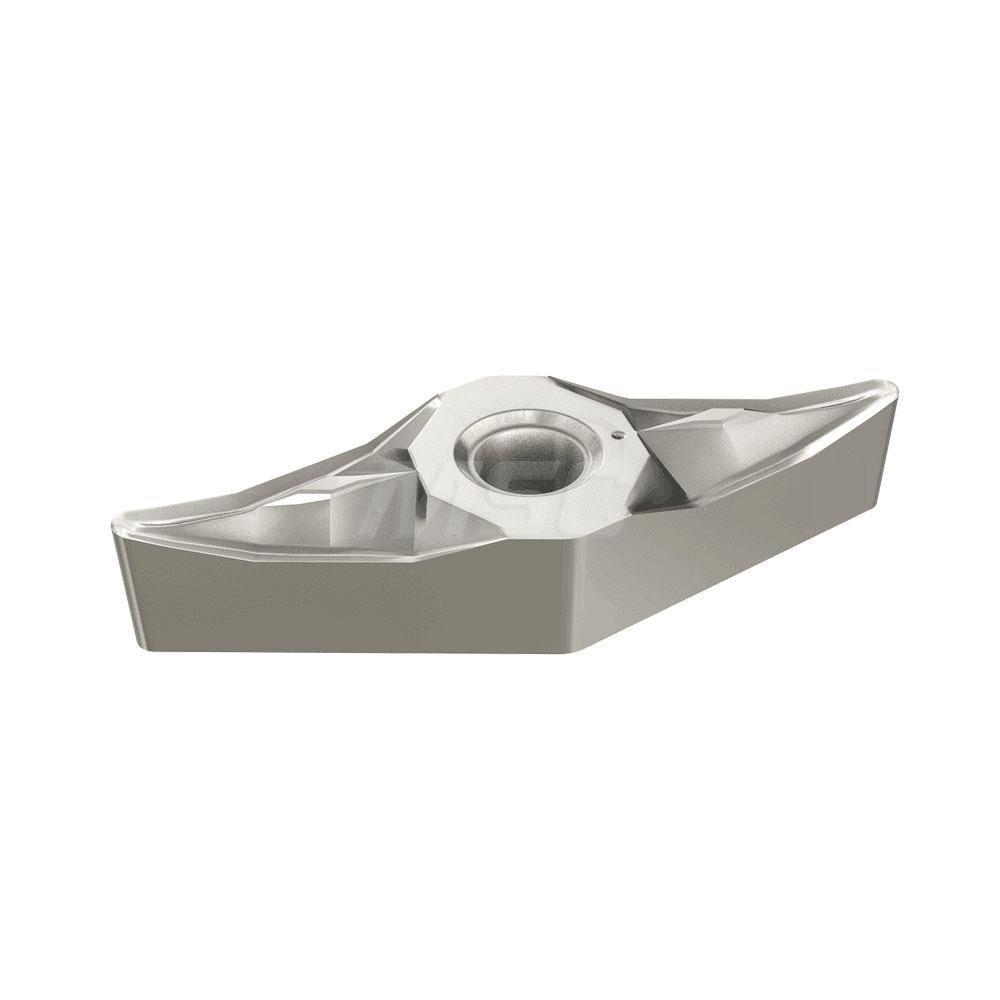

VNMS 332-12 IC20

Specifications

Coating/FinishUncoated
MaterialCarbide
Size0.38
Included Angle35 degrees
Corner Radius (Inch)0.03
StyleVNMS
Thickness (Inch)0.19
Short DescriptionISCAR VNMS-332-12 IC20 CARB INSERT FOR ALUM/NON-FERROUS
Long Description35° rhombic single-sided inserts. Used for soft and nonferrous materials. A special positive rake angle for moderate cutting forces.
Unit Of MeasureImperial
ShapeDiamond
Insert Edge Length (Decimal)0.65
Minimum Depth of Cut (Decimal)0.04
Maximum Depth of Cut (Decimal)0.14
Minimum Feed (Decimal)0.0028
Maximum Feed (Decimal)0.01
Work MaterialStainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance AngleNegative
Machining ApplicationFinishing-Medium
Country of OriginIsrael
Base Item NumberTurning Indexable Inserts
Corner Radius0.0310
Family Short Description35° Rhombic Single-Sided Inserts for Soft and Nonferrous Materials
Height0.55 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.41 OZ
Width2.20 Inch
Insert CoatingUncoated
APP1NameExt. 35° Diamond 72.5° Approac
FamilyNameVNMS-12
Max. Depth Of Cut0.1380
Insert StyleVNMS
Insert Shape35° Diamond
Insert Thickness0.1870
Weight (OZ)0.40564
Width (Inch)2.2
Cutting Edge MaterialCarbide
Measurement TypeInch
