Iscar

5502802

WNMA 3-2 IC428

Specifications

Coating/FinishTiC+Al2O3
MaterialCarbide
Size0.38
Included Angle80 degrees
Corner Radius (Inch)0.03
StyleWNMA
Thickness (Inch)0.16

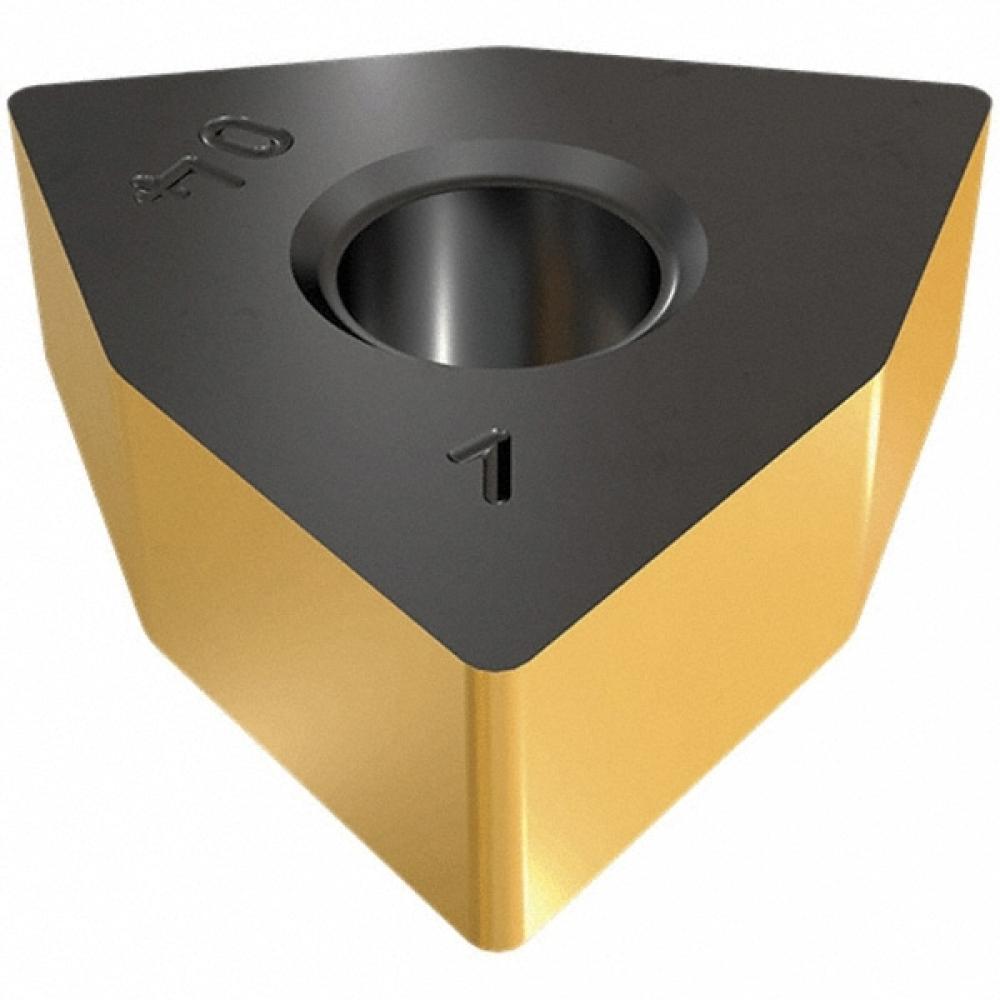

Short DescriptionWNMA-3-2-IC428 ISCAR CARBIDE INSERT
Long DescriptionDouble-sided trigon inserts, used for short chipping materials such as cast iron.
Unit Of MeasureImperial
ShapeTrigon
Insert Edge Length (Decimal)0.26
Minimum Depth of Cut (Decimal)0.04
Maximum Depth of Cut (Decimal)0.12
Minimum Feed (Decimal)0.0012
Maximum Feed (Decimal)0.02
Work MaterialSteel+Hardened Materials+Cast Iron
Clearance AngleNegative
Machining ApplicationFinishing-Medium
Country of OriginIsrael
Base Item NumberTurning Indexable Inserts
Corner Radius0.0310
Family Short DescriptionDouble-Sided Trigon Inserts for Short Chipping Materials such as Cast Iron
Height0.39 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.21 OZ
Width1.57 Inch
Insert CoatingTiC+Al2O3
APP1NameExt. 80° Trigon 95° Approach
FamilyNameWNMA/WNMA-WG
Max. Depth Of Cut0.1180
Insert StyleWNMA
Insert Shape80° Trigon
Insert Thickness0.1560
Weight (OZ)0.20811
Width (Inch)1.57
Cutting Edge MaterialCarbide
Measurement TypeInch
