Iscar
5502835

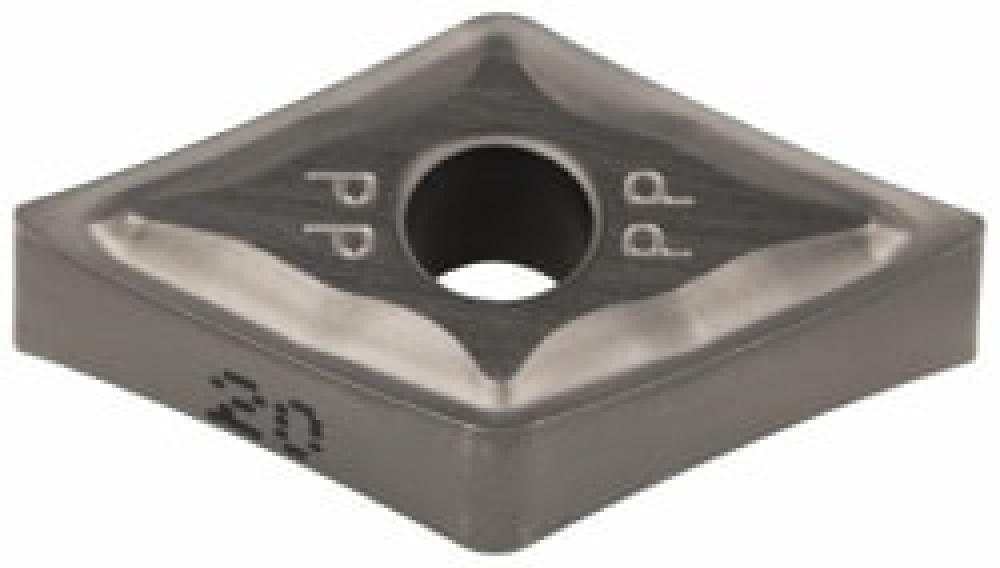

DNMG 331-PP IC20
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | DNMG |
| Thickness (Inch) | 0.19 |
| Short Description | DNMG 331-PP IC-20 ISCAR INSERT |
| Long Description | Double-sided 55° rhombic inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.46 |
| Work Material | Stainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous |
| Clearance Angle | Negative |
| Machining Application | Finishing-Medium |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | 55° Double-Sided Rhombic Inserts for Machining Very Ductile Materials under Medium Cutting Conditions |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.28 OZ |
| Width | 1.57 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 55° Diamond 62.5° Approac |
| FamilyName | DNMG/DNGG-PP |
| Insert Style | DNMG |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.27513 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
