Iscar
5503199

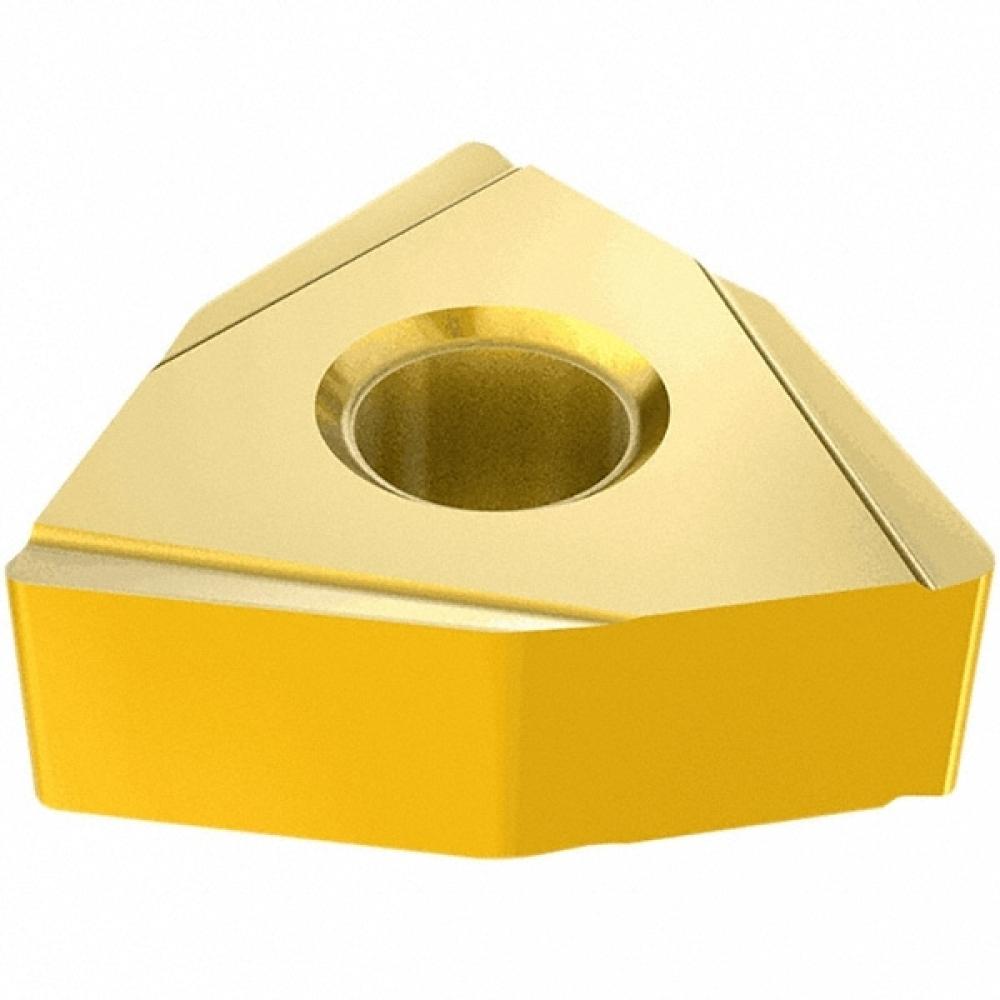

WNMZ 3-1-RF IC530N
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Material | Cermet |
| Size | 0.38 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | WNMZ |
| Thickness (Inch) | 0.16 |
| Short Description | ISCAR WNMZ-3-1-RF-IC530N INSERT |
| Long Description | Double-sided trigon inserts with a ground chipformer for finishing applications. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Insert Edge Length (Decimal) | 0.26 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.0047 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Double-Sided Trigon Inserts with a Ground Chipformer for Finishing Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.12 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+TiN |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WNMZ-RF/LF |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | WNMZ |
| Insert Shape | 80° Trigon |
| Insert Thickness | 0.1560 |
| Weight (OZ) | 0.11993 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
