Iscar
5503785

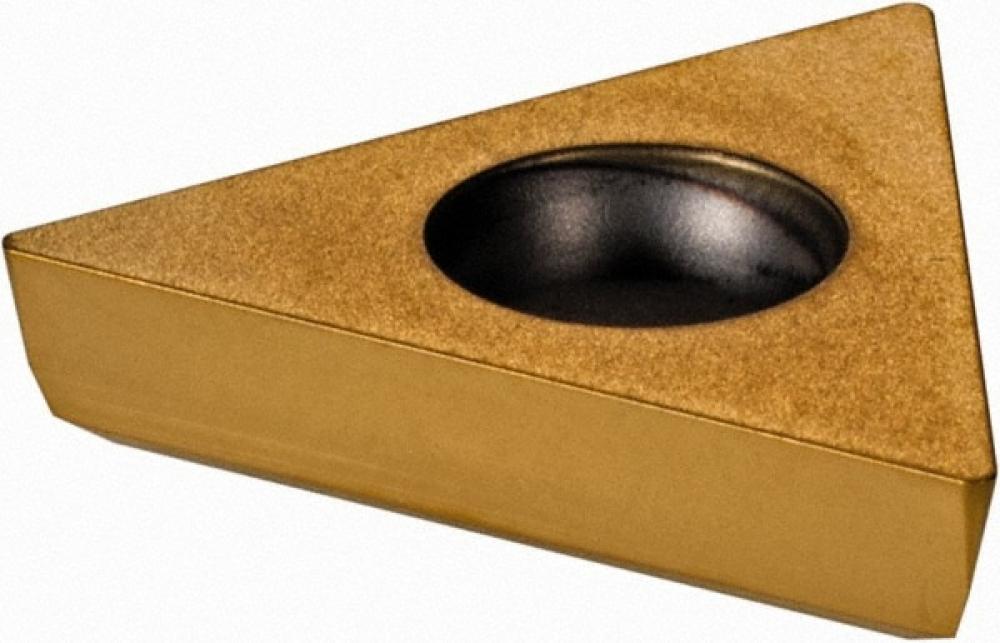

TPGB 321-60 IC570
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | TPGB |
| Thickness (Inch) | 0.13 |
| Short Description | ISCAR TPGB-321-60 IC570 INSERT |
| Long Description | Triangular 11° positive flank inserts. Single-sided, without chipformer. Suitable for short chipping materials such as cast iron. |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.65 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | 11 deg Positive |
| Machining Application | Finishing-Medium |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Triangular Inserts with an 11° Positive Flank for Short Chipping Materials |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.16 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+TiN |
| APP1Name | Int. 60° Triangle 91° Approach |
| FamilyName | TPGB |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | TPGB |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.1250 |
| Weight (OZ) | 0.15873 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
