Iscar
5504877

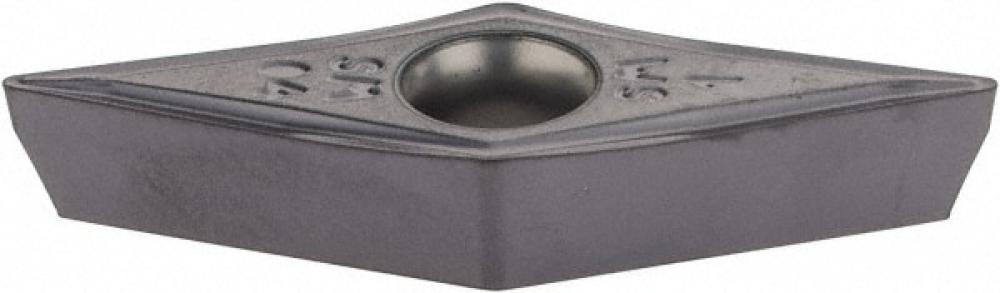

VCMT 331-SM IC907
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | VCMT |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR VCMT-331-SM IC907 CARB INSERT |
| Long Description | 35° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.65 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.1 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous |
| Clearance Angle | 7 deg Positive |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | 35° Rhombic Inserts with a 7° Positive Flank for Semi-Finishing and Finish Turning on Soft Materials and Exotic Alloys |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.39 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Ext. 35° Diamond 112° Approach |
| FamilyName | VCMT-SM |
| Max. Depth Of Cut | 0.0980 |
| Insert Style | VCMT |
| Insert Shape | 35° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.39153 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
