Iscar

5505153

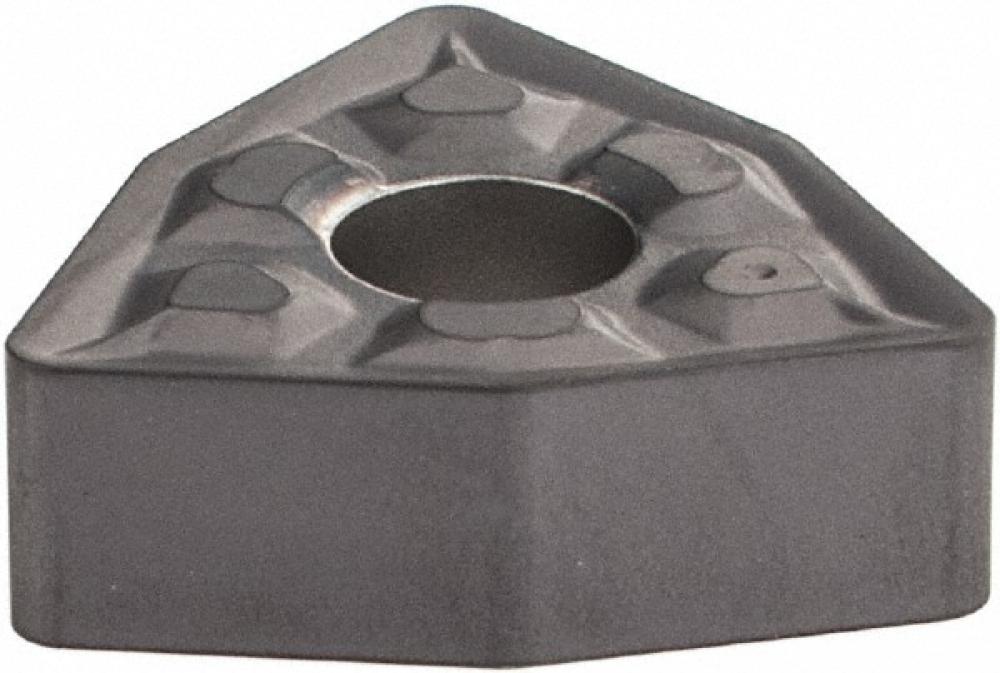

WNMG 3-2-TF IC907

Specifications

Coating/FinishTiAlN+TiN
MaterialCarbide
Size0.38
Included Angle80 degrees
Corner Radius (Inch)0.03
StyleWNMG
Thickness (Inch)0.16
Short DescriptionISCAR WNMG-3-2-TF IC907 INSERT
Long DescriptionDouble-sided trigon insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
Unit Of MeasureImperial
ShapeTrigon
Insert Edge Length (Decimal)0.26
Minimum Depth of Cut (Decimal)0.04
Maximum Depth of Cut (Decimal)0.12
Minimum Feed (Decimal)0.0047
Maximum Feed (Decimal)0.01
Work MaterialStainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance AngleNegative
Machining ApplicationFinishing-Semi Roughing
Country of OriginIsrael
Base Item NumberTurning Indexable Inserts
Corner Radius0.0310
Family Short DescriptionDouble-Sided Trigon Inserts for Machining a Wide Range of Materials under Medium Cutting Conditions
Height0.39 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.20 OZ
Width1.57 Inch
Insert CoatingTiAlN+TiN
APP1NameExt. 80° Trigon 95° Approach
FamilyNameWNMG-TF
Max. Depth Of Cut0.1180
Insert StyleWNMG
Insert Shape80° Trigon
Insert Thickness0.1560
Weight (OZ)0.20106
Width (Inch)1.57
Cutting Edge MaterialCarbide
Measurement TypeInch
