Iscar
5505967

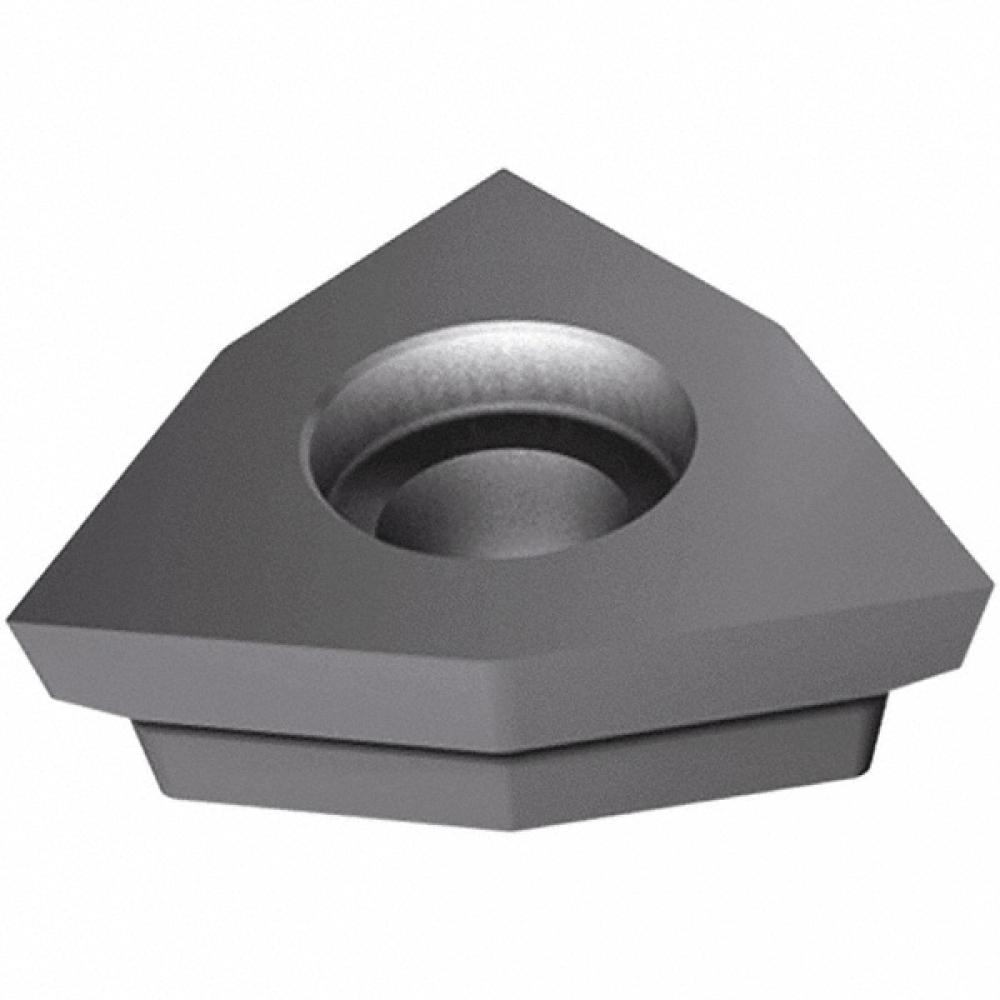

WPEB 060402N08 IC08
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | WPEB |
| Thickness (Inch) | 0.16 |
| Short Description | WPEB-060402N08-IC08 ISCAR ISOTURN INSERTS |
| Long Description | Precision positive 8° and 12° clearance, 80° and 84° trigon inserts with a flat rake for finishing applications on Swiss automatics. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Insert Edge Length (Decimal) | 0.24 |
| Minimum Depth of Cut (Decimal) | 0.01 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Hi Temp+Non Ferrous |
| Clearance Angle | 11 deg Positive |
| Machining Application | Medium-Semi Roughing |
| Country of Origin | Switzerland |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0080 |
| Family Short Description | Precision Positive 8° and 12° Clearance, 80° and 84° Trigon Inserts with a Flat Rake for Finishing Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.17 OZ |
| Width | 1.57 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. Positive Trigon 45°Approa |
| FamilyName | WPEB |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | WPEB |
| Insert Shape | 80° Trigon |
| Insert Thickness | 0.1570 |
| Weight (OZ) | 0.17284 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
