Iscar
5505992

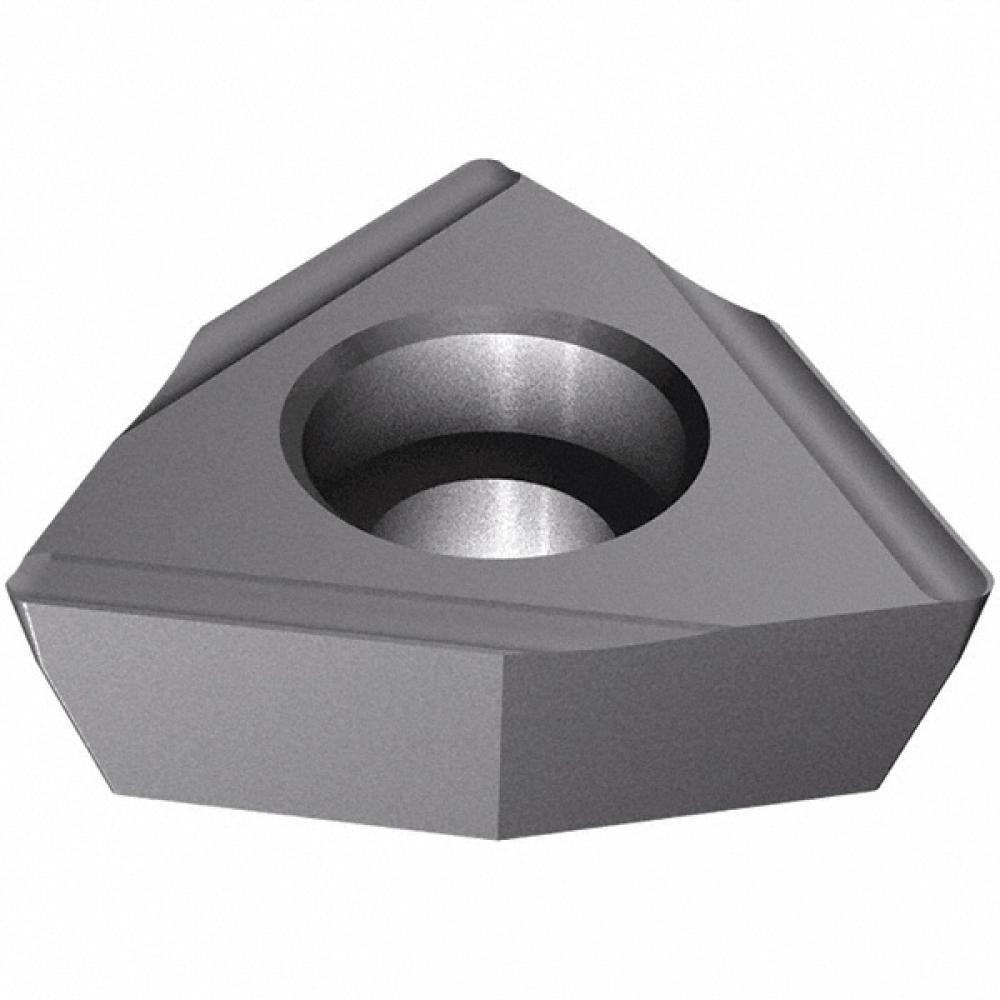

WPEX 060400L08 IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 80 degrees |
| Style | WPEX |
| Thickness (Inch) | 0.16 |
| Short Description | WPEX-060400L08-IC908 ISCAR METALDUR INSERTS (WPEX, WPEB) |
| Long Description | Precision positive 8° and 12° clearance, 80° and 84° trigon inserts with a chipformer for finishing applications on Swiss automatics. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Insert Edge Length (Decimal) | 0.24 |
| Minimum Depth of Cut (Decimal) | 0.01 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron |
| Clearance Angle | 11 deg Positive |
| Machining Application | Semi Finishing-Semi Roughing |
| Country of Origin | Switzerland |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | 80° and 84° Precision Trigon Inserts with Positive 8° and 12° Clearance for Finishing Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.17 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN |
| APP1Name | Ext. Positive Trigon 45°Approa |
| FamilyName | WPEX |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | WPEX |
| Insert Shape | 80° Trigon |
| Insert Thickness | 0.1570 |
| Weight (OZ) | 0.16931 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
