Iscar
5506017

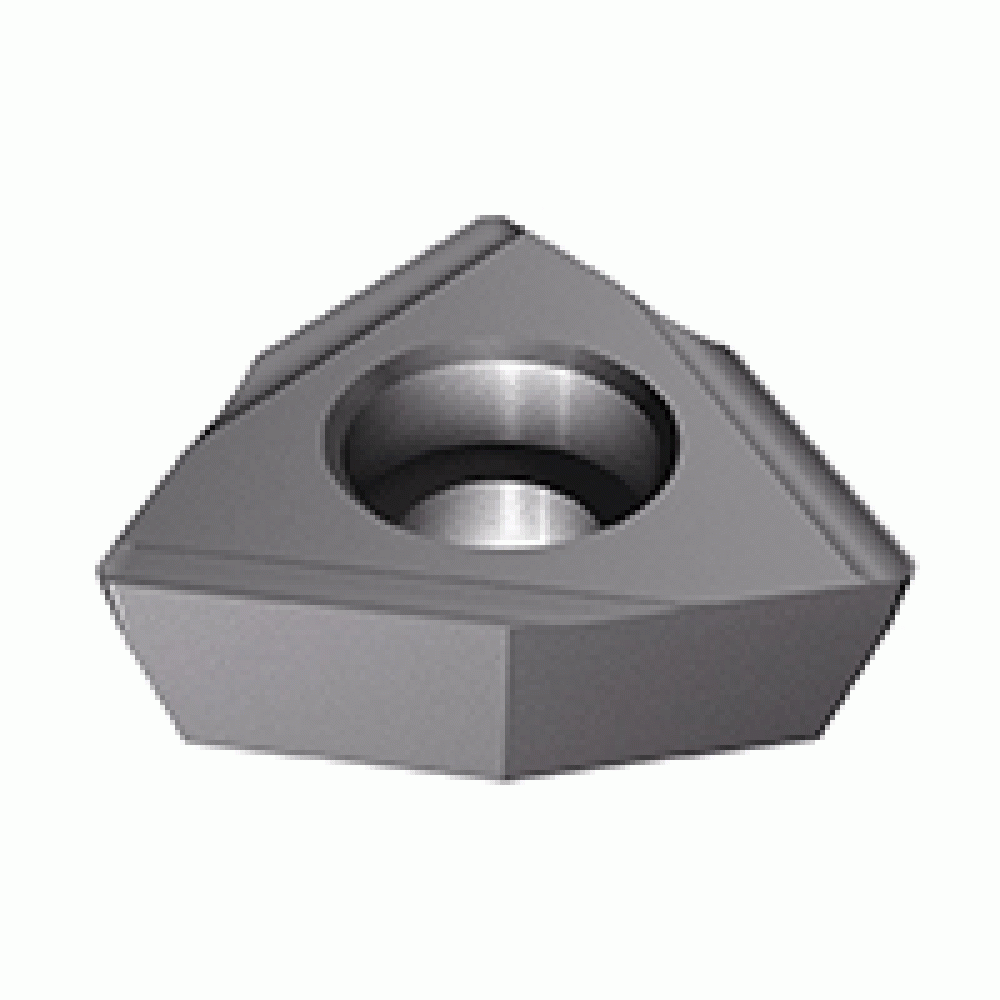

WPEX 050300R12 IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Material | Carbide |
| Style | WPEX |
| Short Description | ISCAR WPEX 050300R12 IC908 |
| Long Description | Precision positive 8° and 12° clearance, 80° and 84° trigon inserts with a chipformer for finishing applications on Swiss automatics. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Country of Origin | Switzerland |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | 80° and 84° Precision Trigon Inserts with Positive 8° and 12° Clearance for Finishing Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.10 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. Positive Trigon 45°Approa |
| FamilyName | WPEX |
| Weight (OZ) | 0.10229 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
