Iscar
5506174

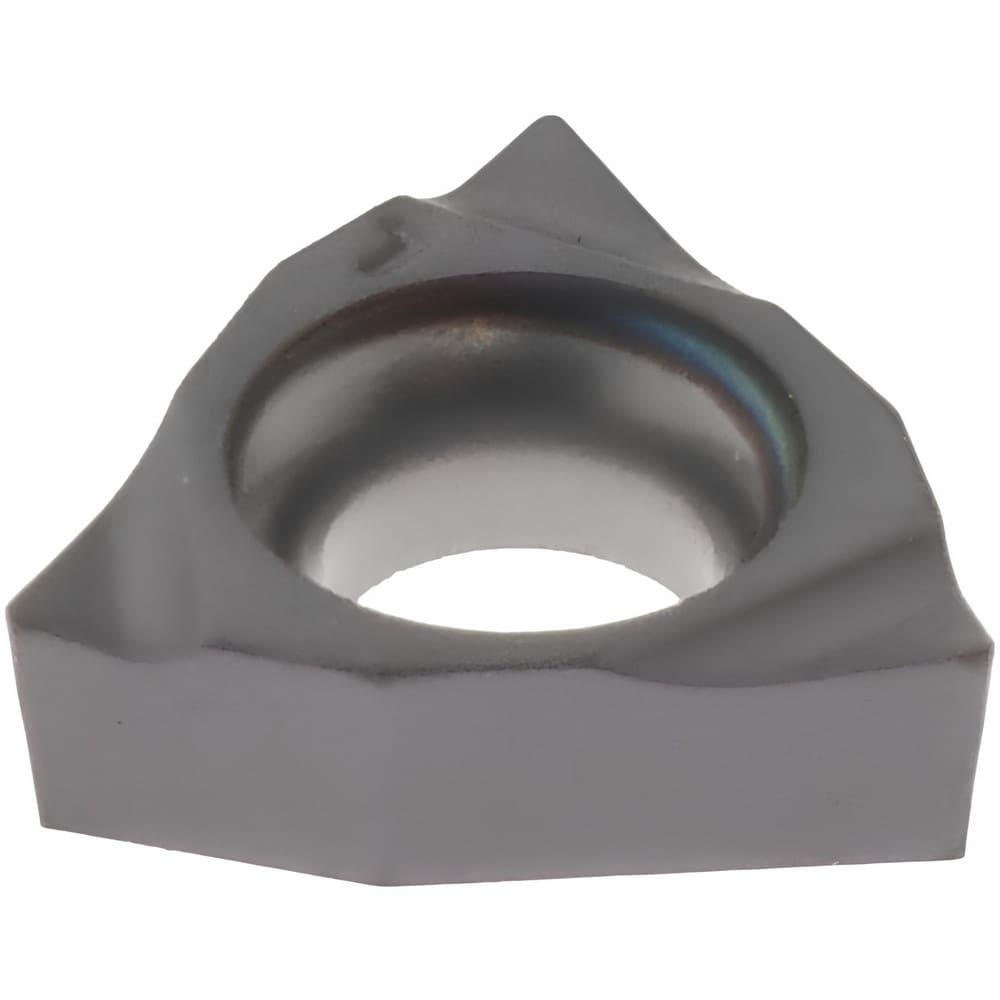

WBMT 52.004L IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Material | Carbide |
| Size | 0.16 |
| Included Angle | 80 degrees |
| Style | WBMT |
| Thickness (Inch) | 0.06 |
| Short Description | ISCAR WBMT-52.004L IC908 TRIGON CARB INSERT R.004 |
| Long Description | Trigon inserts with a 5° positive flank ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Insert Edge Length (Decimal) | 0.09 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.08 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron |
| Clearance Angle | 5 deg Positive |
| Machining Application | Semi Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0040 |
| Family Short Description | Trigon Inserts with a 5° Positive Flank Ground Chipformer for Finish Turning |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.05 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN |
| APP1Name | Int. 80° Trigon 93° Approach |
| FamilyName | WBMT |
| Max. Depth Of Cut | 0.0790 |
| Insert Style | WBMT |
| Insert Shape | 80° Trigon |
| Insert Thickness | 0.0630 |
| Weight (OZ) | 0.05291 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
