Iscar
5506350

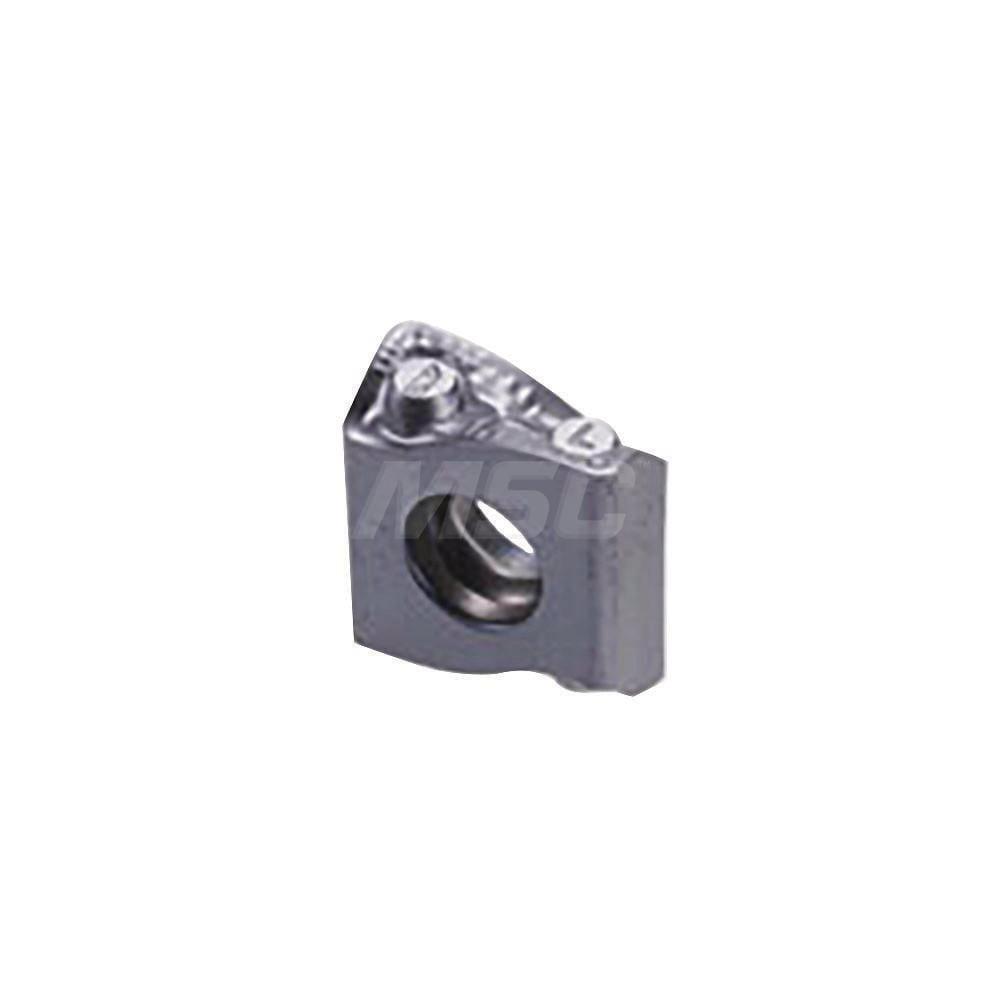

LNMX 110408L-HT IC428
Specifications
| Coating/Finish | TiC+Al2O3 |
|---|---|
| Material | Carbide |
| Corner Radius (Inch) | 0.03 |
| Style | LNMX |
| Thickness (Inch) | 0.45 |
| Short Description | LNMX-110408L-HT-IC428 |
| Long Description | Tangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on alloy and stainless steel and on cast iron. |
| Unit Of Measure | Imperial |
| Shape | Tangential |
| Insert Edge Length (Decimal) | 0.43 |
| Work Material | Steel+Hardened Materials+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Finishing-Medium |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Tangential Inserts with 4 Cutting Edges and a Positive Rake Angle for High Metal Removal Rates |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.25 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiC+Al2O3 |
| APP1Name | Ext. Tangential 75° Approach |
| FamilyName | LNMX-HT |
| Insert Style | LNMX |
| Insert Shape | Tangential |
| Insert Thickness | 0.4490 |
| Weight (OZ) | 0.25397 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
