Iscar

5506610

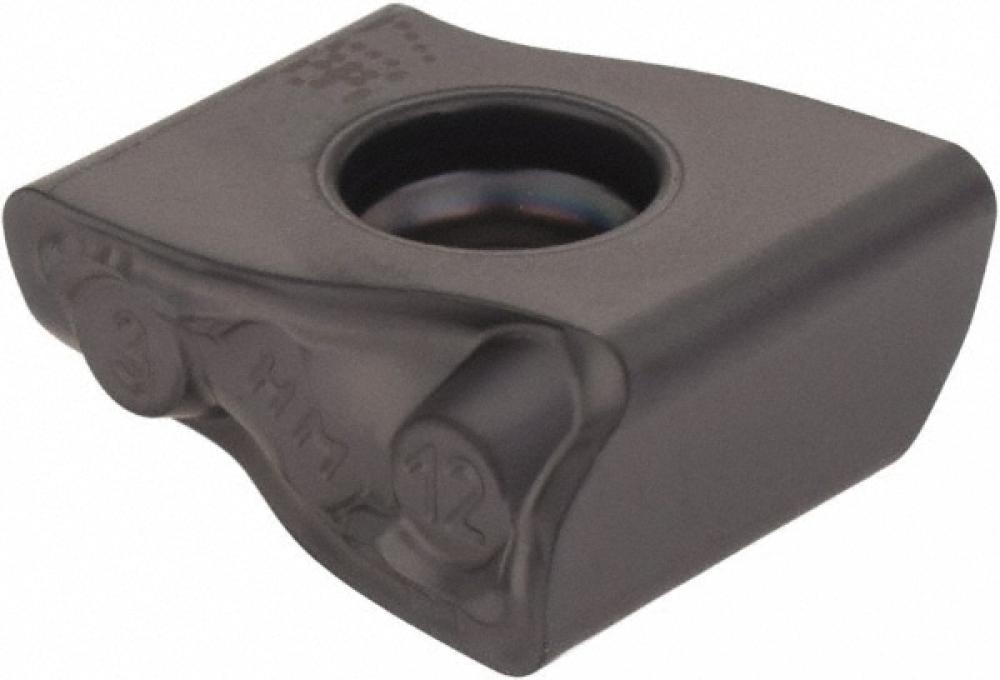

LNMX 150612L-HM IC907

Specifications

Coating/FinishTiAlN+TiN
MaterialCarbide
Corner Radius (Inch)0.05
StyleLNMX
Thickness (Inch)0.53
Short DescriptionLNMX-150612L-HM-IC907 ISCAR INSERT
Long DescriptionTangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on stainless steel, high temperature alloys and soft, low carbon steel.
Unit Of MeasureImperial
ShapeTangential
Insert Edge Length (Decimal)0.59
Minimum Depth of Cut (Decimal)0.06
Maximum Depth of Cut (Decimal)0.28
Minimum Feed (Decimal)0.01
Maximum Feed (Decimal)0.03
Work MaterialStainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance AngleNegative
Machining ApplicationFinishing-Semi Roughing
Country of OriginIsrael
Base Item NumberTurning Indexable Inserts
Corner Radius0.0470
Family Short DescriptionTangential Inserts with a Positive Rake Angle for High Metal Removal on Soft and Ductile Materials
Height0.39 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.53 OZ
Width1.57 Inch
Insert CoatingTiAlN+TiN
APP1NameExt. Tangential 93° Approach
FamilyNameLNMX-HM
Max. Depth Of Cut0.2760
Insert StyleLNMX
Insert ShapeTangential
Insert Thickness0.5280
Weight (OZ)0.5291
Width (Inch)1.57
Cutting Edge MaterialCarbide
Measurement TypeInch
