Iscar
5507254

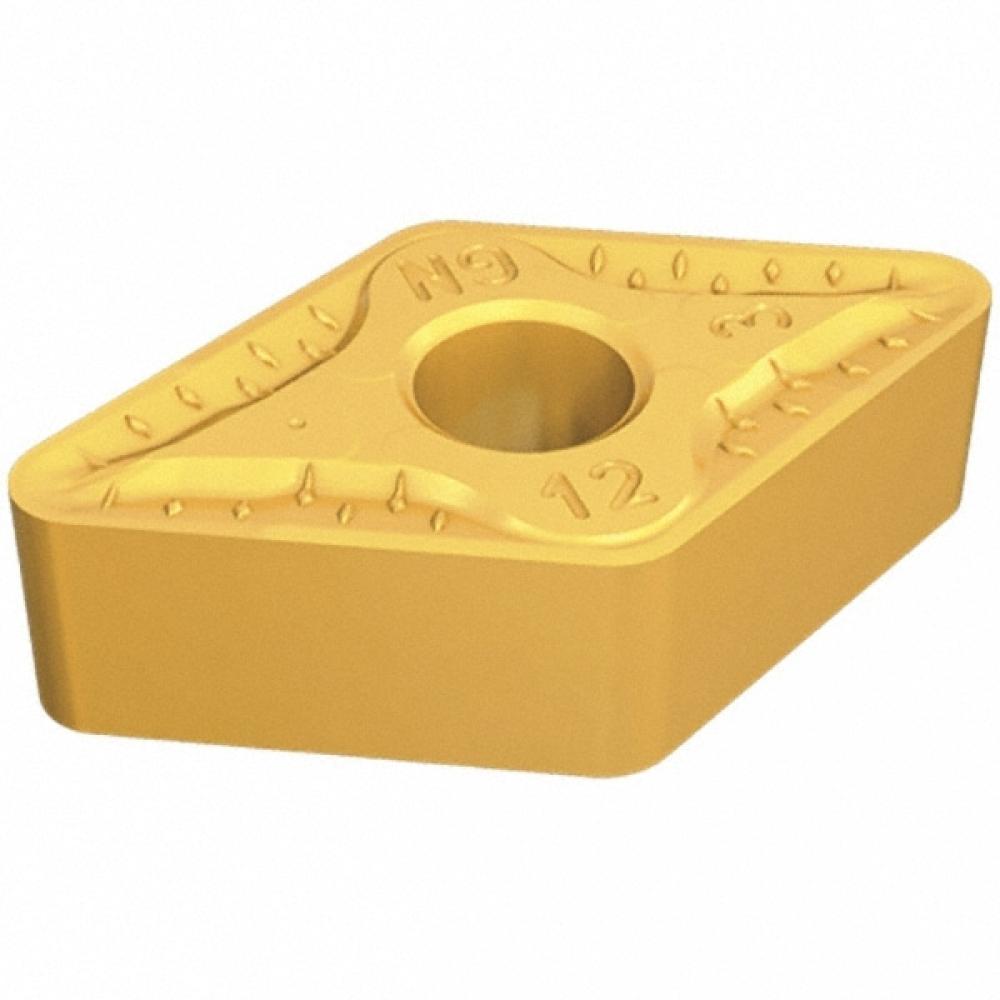

DNMG 443-GN IC9350
Specifications
| Coating/Finish | TiCN+alpha Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | DNMG |
| Thickness (Inch) | 0.25 |
| Short Description | DNMG-443-GN-IC9350 ISCAR TURNING INSERTS CVD |
| Long Description | Double-sided 55° rhombic inserts, secure cutting edge, for medium- and semi-roughing on steel and cast iron. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.61 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0470 |
| Family Short Description | Double-Sided 55° Rhombic Inserts for General Applications |
| Height | 0.59 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.61 OZ |
| Width | 2.17 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 55° Diamond 62.5° Approac |
| FamilyName | DNMG-GN |
| Insert Style | DNMG |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.2500 |
| Weight (OZ) | 0.61023 |
| Width (Inch) | 2.17 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
