Iscar
5507543

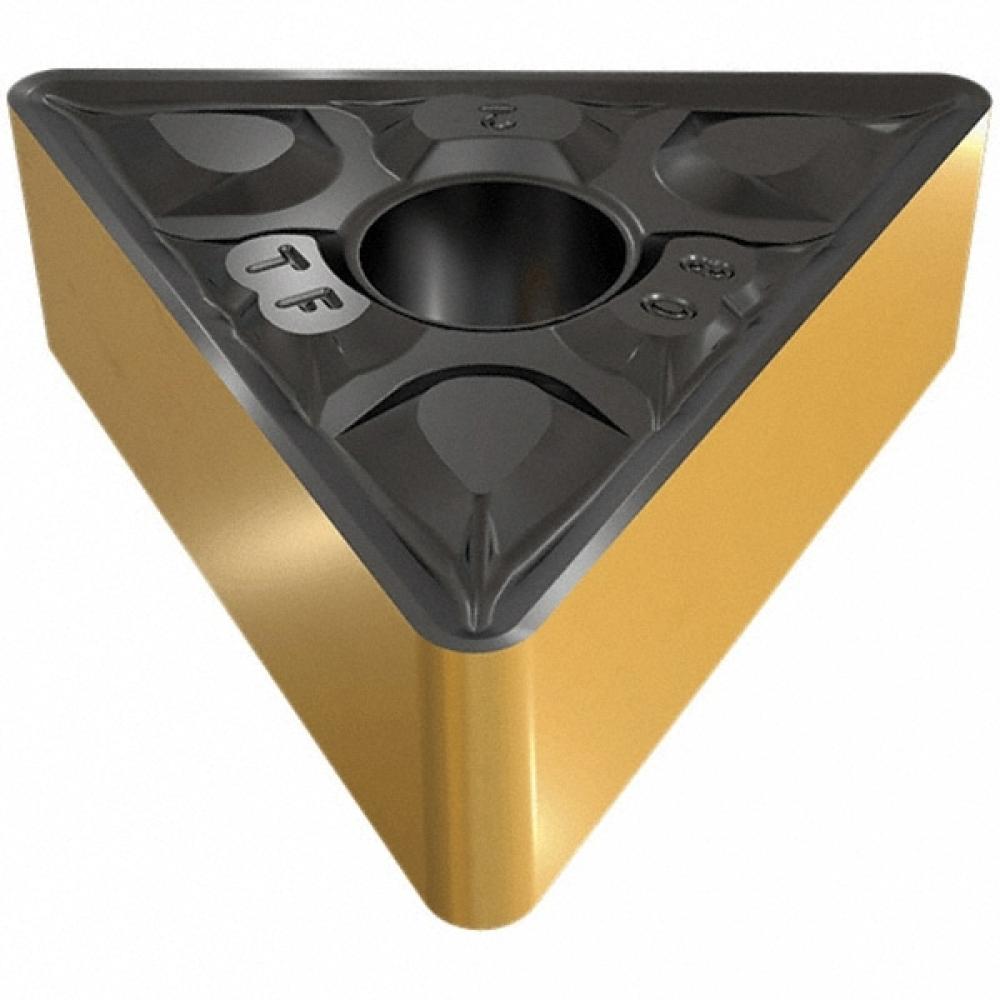

TNMG 332-TF IC20N
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Cermet |
| Size | 0.38 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | TNMG |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR TNMG-332-TF-IC20N |
| Long Description | Double-sided, triangular insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.65 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.0047 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Medium |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided Triangular Inserts for Machining a Wide Range of Materials under Medium Cutting Conditions |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.16 OZ |
| Width | 1.57 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 60° Triangle 60° Approach |
| FamilyName | TNMG-TF |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | TNMG |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.1552 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
