Iscar
5507570

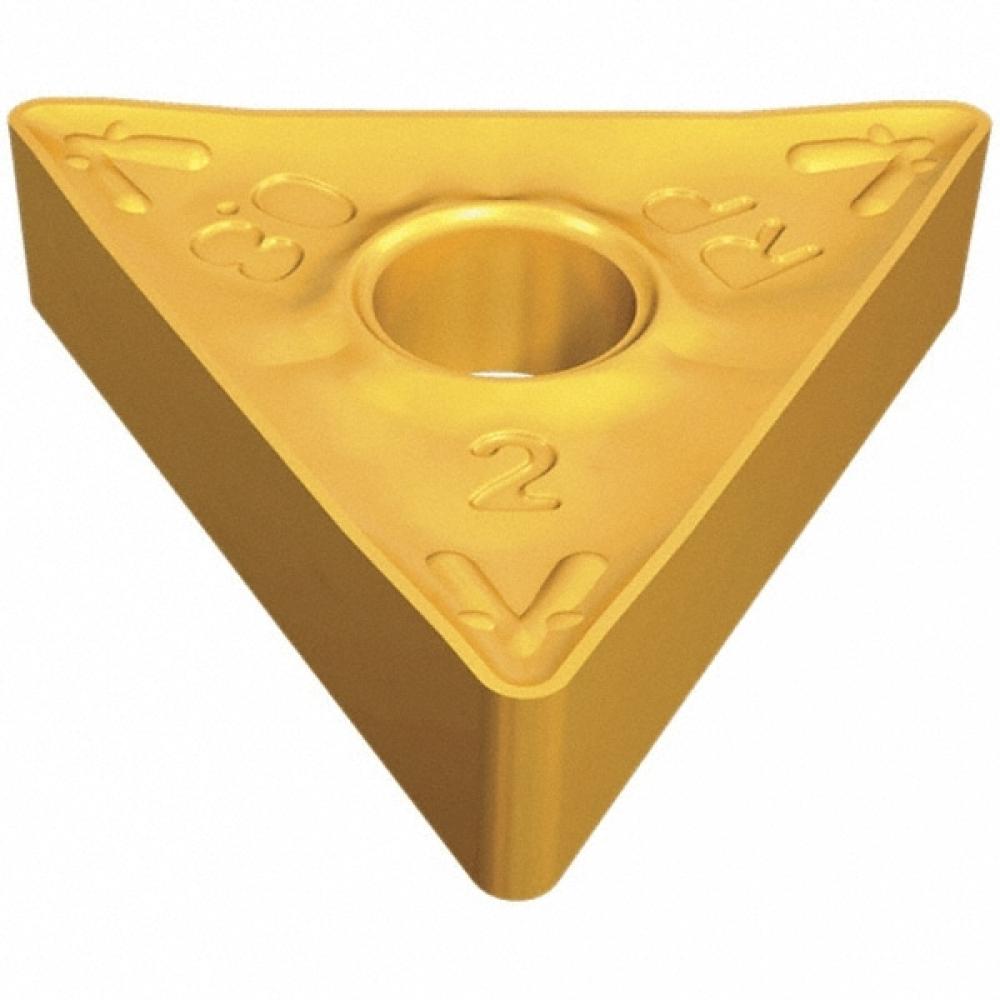

TNMM 432-RP IC9350
Specifications
| Coating/Finish | TiCN+alpha Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | TNMM |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR TNMM-432RP IC-9350 |
| Long Description | Single-sided triangular inserts with a strong, positive land and rake, combined with positive radial edge inclination. Used for roughing of soft and ductile materials. |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.87 |
| Minimum Depth of Cut (Decimal) | 0.08 |
| Maximum Depth of Cut (Decimal) | 0.2 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Single-Sided Triangular Inserts for Roughing of Soft and Ductile Materials |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.47 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 60° Triangle 60° Approach |
| FamilyName | TNMM-RP |
| Max. Depth Of Cut | 0.1970 |
| Insert Style | TNMM |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.46561 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
