Iscar
5507613

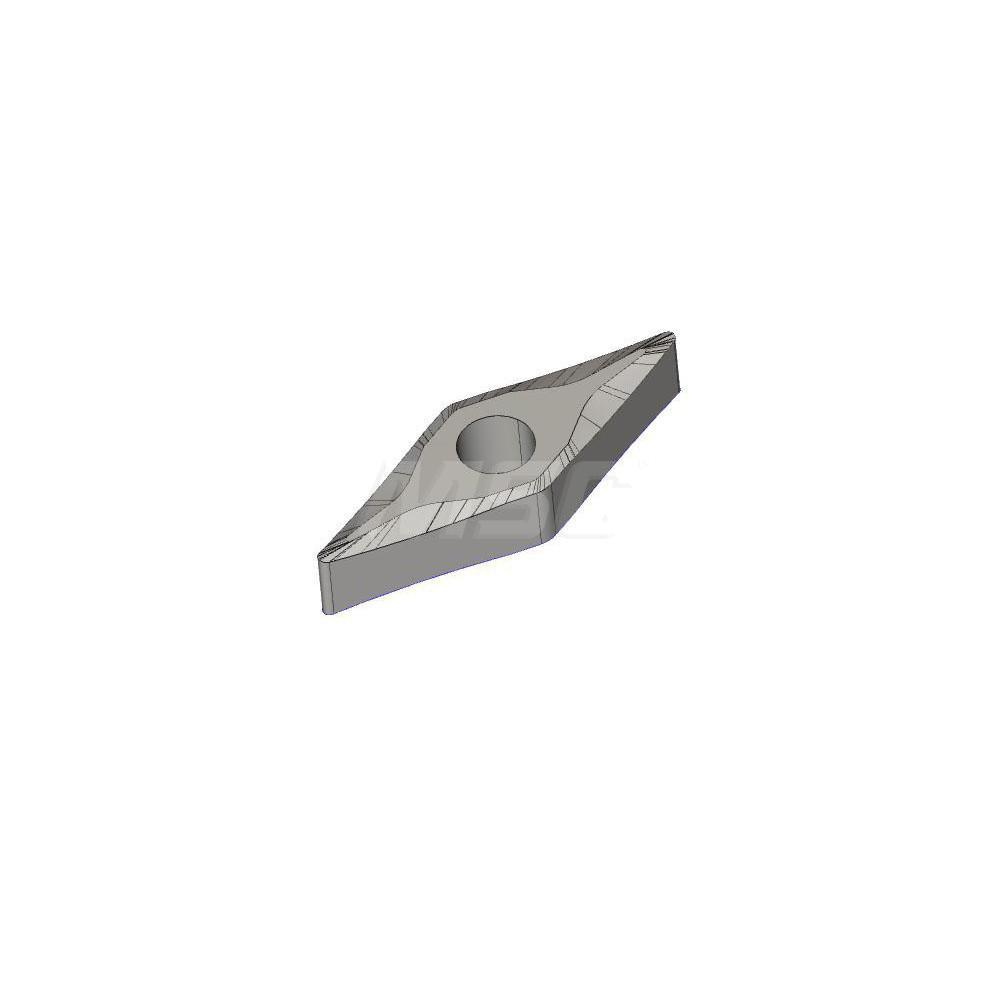

VNMG 2.5-1-NF IC9350
Specifications
| Coating/Finish | TiCN+alpha Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.28 |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | VNMG |
| Thickness (Inch) | 0.16 |
| Short Description | VNMG-2.5-1-NF-IC9350 ISCAR TURNING INSERTS CVD |
| Long Description | Double-sided 35° rhombic inserts for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.49 |
| Minimum Depth of Cut (Decimal) | 0.03 |
| Maximum Depth of Cut (Decimal) | 0.08 |
| Minimum Feed (Decimal) | 0.0028 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Double-Sided 35° Rhombic Inserts for Semi-Finishing and Finishing Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.18 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 35° Diamond 72.5° Approac |
| FamilyName | VNMG/VNGG-NF |
| Max. Depth Of Cut | 0.0790 |
| Insert Style | VNMG |
| Insert Shape | 35° Diamond |
| Insert Thickness | 0.1560 |
| Weight (OZ) | 0.17637 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
