Iscar
5507688

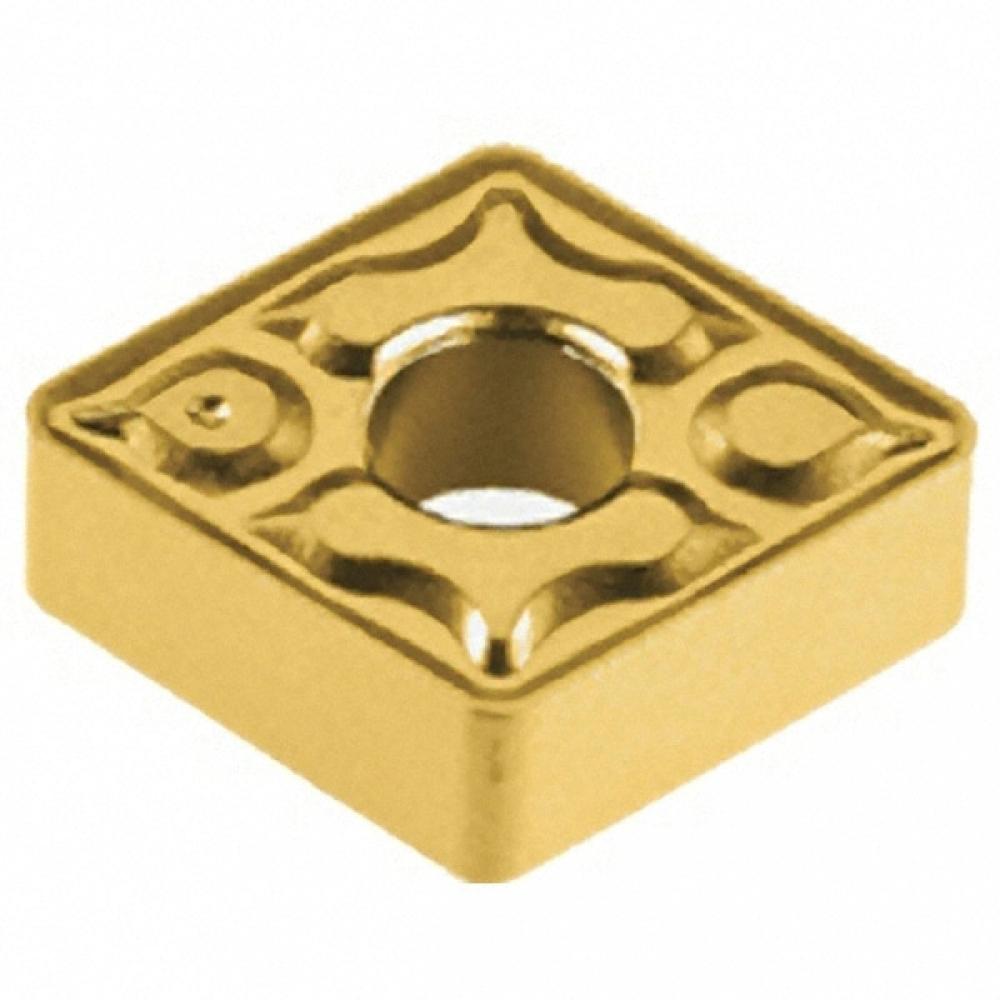

SNMG 433-TF IC9250
Specifications
| Coating/Finish | TiCN+alpha Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | SNMG |
| Thickness (Inch) | 0.19 |
| Short Description | SNMG-433-TF-IC9250 ISCAR TURNING INSERTS CVD |
| Long Description | Double-sided square inserts, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. |
| Unit Of Measure | Imperial |
| Shape | Square |
| Minimum Depth of Cut (Decimal) | 0.06 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0470 |
| Family Short Description | Double-Sided Square Inserts for Machining a Wide Range of Materials under Medium Cutting Conditions |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.34 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 90° Square 45° Approach |
| FamilyName | SNMG-TF |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | SNMG |
| Insert Shape | 90° Square |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.34215 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
