Iscar
5507689

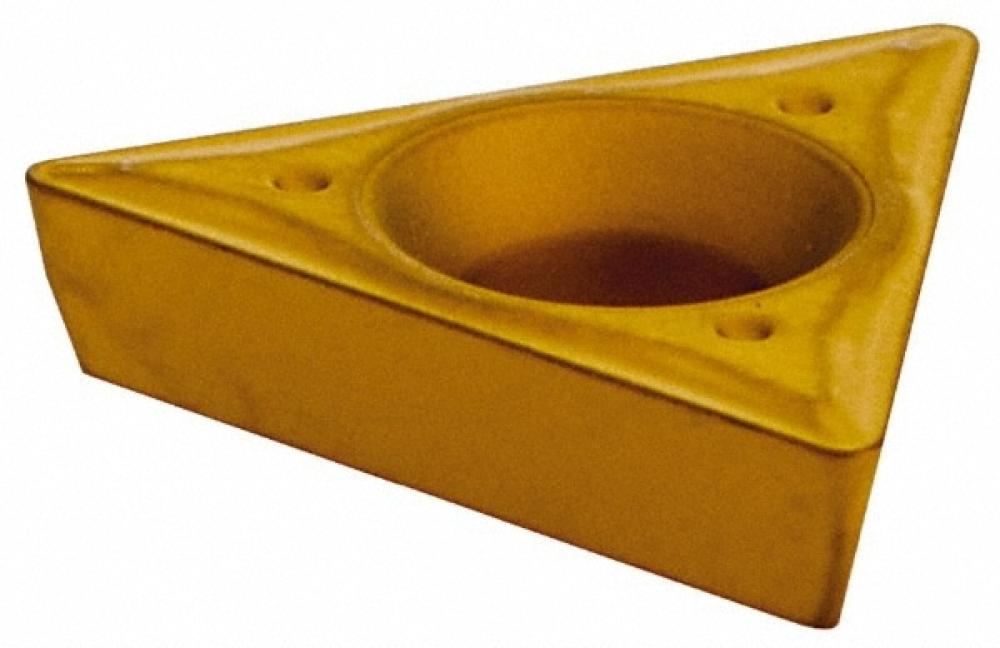

TPMT 2-1 IC9250
Specifications
| Coating/Finish | TiCN+alpha Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.25 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | TPMT |
| Thickness (Inch) | 0.09 |
| Short Description | ISCAR TPMT-2-1 IC9250 CARB INSERT |
| Long Description | 11° positive triangular inserts. Positive chipformer, low cutting forces. Used for internal turning and for finishing. |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.43 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.0047 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | 11 deg Positive |
| Machining Application | Finishing-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Triangular 11° Positive Inserts with a Positive Chipformer Exerts Low Cutting Forces for Internal Finish Turning |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.10 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Chamfering & Bottom Deburring |
| FamilyName | TPMT |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | TPMT |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.0940 |
| Weight (OZ) | 0.09524 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
