Iscar
5507693

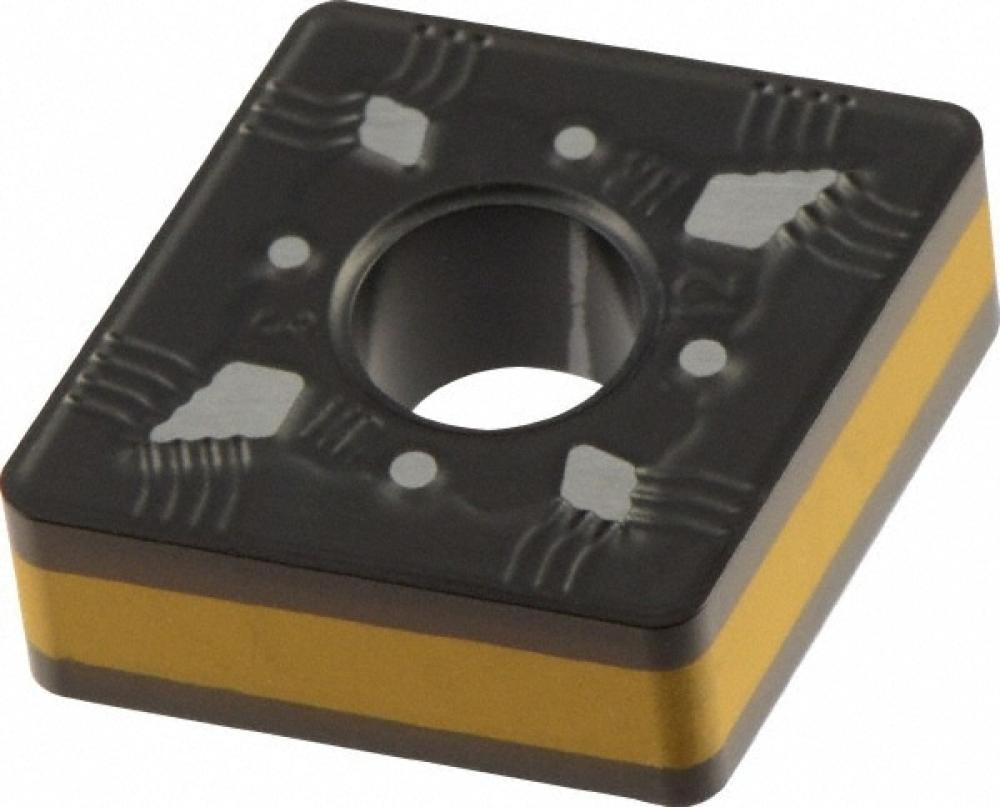

CNMG 543-NR IC8250
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.63 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | CNMG |
| Thickness (Inch) | 0.25 |
| Short Description | ISCAR CNMG-543-NR IC8250 CARB INSERT |
| Long Description | Double-sided 80° rhombic inserts with a special chipformer for heavy machining. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.64 |
| Minimum Depth of Cut (Decimal) | 0.08 |
| Maximum Depth of Cut (Decimal) | 0.28 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0470 |
| Family Short Description | Double-Sided 80° Rhombic Inserts with a Special Chipformer for Heavy Machining |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.76 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 100° Diamond 75° Approach |
| FamilyName | CNMG-NR |
| Max. Depth Of Cut | 0.2760 |
| Insert Style | CNMG |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.2500 |
| Weight (OZ) | 0.75838 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
