Iscar
5507836

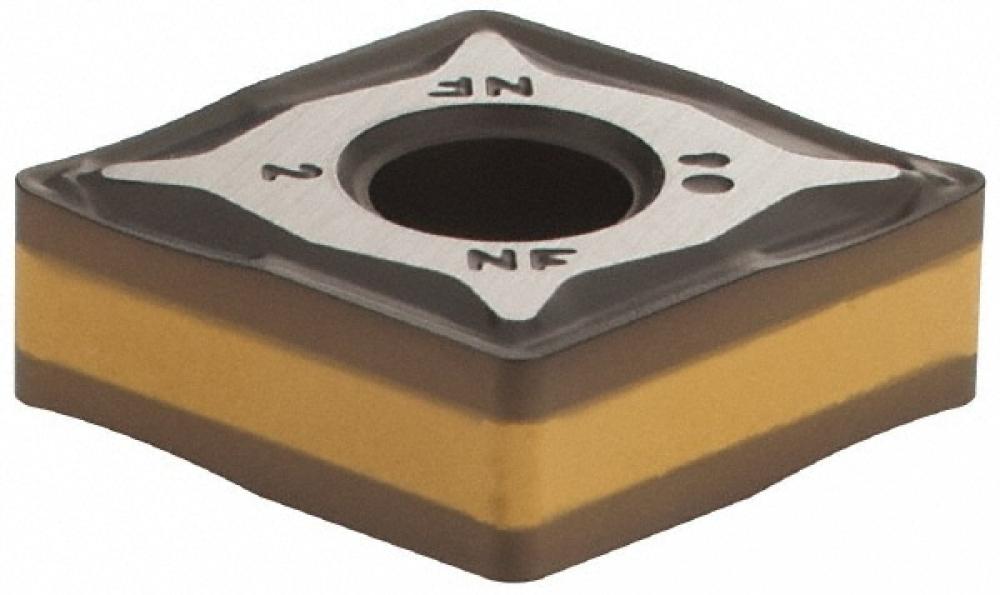

CNMG 432-NF IC8150
Specifications
| Coating/Finish | TiCN+Al2O3+TiCN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | CNMG |
| Thickness (Inch) | 0.19 |
| Short Description | CNMG-432-NF IC8150 ISCAR INSERT |
| Long Description | Double-sided 80° rhombic insert, used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.51 |
| Minimum Depth of Cut (Decimal) | 0.03 |
| Maximum Depth of Cut (Decimal) | 0.14 |
| Minimum Feed (Decimal) | 0.0031 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Steel+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Fine Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided 80° Rhombic Inserts for Semi-Finishing and Finishing Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.37 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiCN+TiN |
| APP1Name | Ext. 100° Diamond 75° Approach |
| FamilyName | CNMG-NF |
| Max. Depth Of Cut | 0.1380 |
| Insert Style | CNMG |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.36684 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
