Iscar
5507839

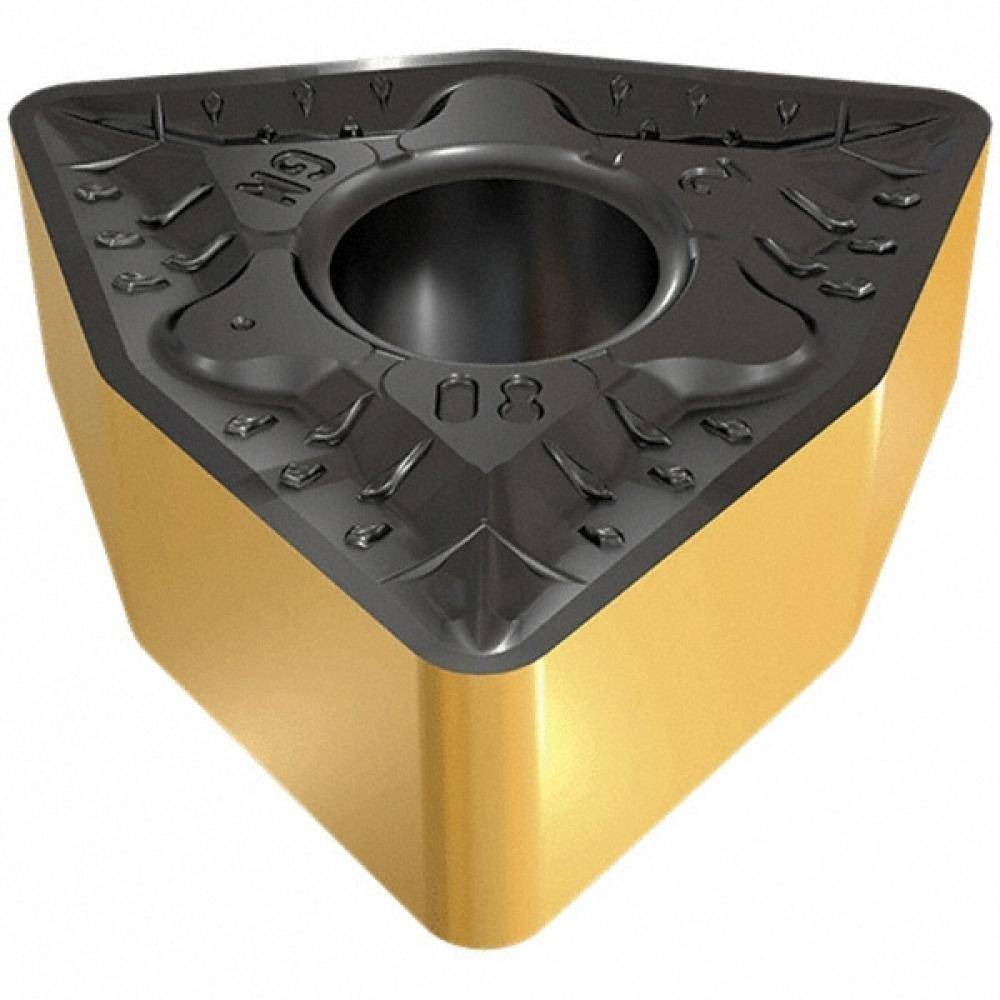

WNMG 3-2-GN IC8150
Specifications
| Coating/Finish | TiCN+Al2O3+TiCN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | WNMG |
| Thickness (Inch) | 0.16 |
| Short Description | WNMG-3-2-GN-IC8150 ISCAR SUMOTEC CVD INSERTS |
| Long Description | Double-sided trigon insert, secure cutting edge, for medium- and semi-roughing on steel and cast iron. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Insert Edge Length (Decimal) | 0.26 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.14 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Steel+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Fine Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided Trigon Inserts for General Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.19 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiCN+TiN |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WNMG-GN |
| Max. Depth Of Cut | 0.1380 |
| Insert Style | WNMG |
| Insert Shape | 80° Trigon |
| Insert Thickness | 0.1560 |
| Weight (OZ) | 0.194 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
