Iscar
5507968

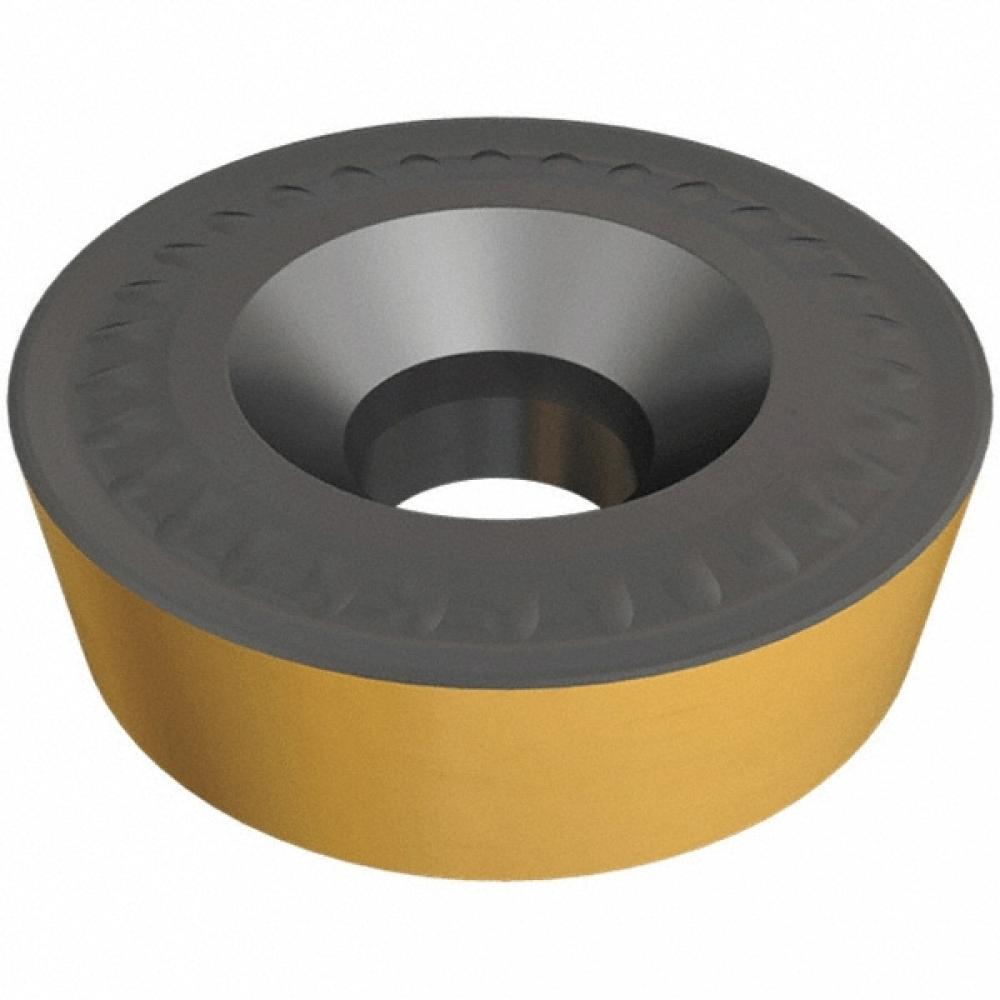

RCMX 250700-NR IC8250
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.98 |
| Style | RCMX |
| Thickness (Inch) | 0.31 |
| Short Description | ISCAR RCMX-250700-NR IC8250 INSERT |
| Long Description | Round 7° inserts with a positive flank and strong cutting edge for rough turning. |
| Unit Of Measure | Imperial |
| Shape | Round |
| Minimum Depth of Cut (Decimal) | 0.16 |
| Maximum Depth of Cut (Decimal) | 0.39 |
| Minimum Feed (Decimal) | 0.02 |
| Maximum Feed (Decimal) | 0.06 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | 7 deg Positive |
| Machining Application | Finishing-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Round 7° Inserts with a Positive Flank and Strong Cutting Edge for Rough Turning |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.64 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. Round Face & Turn |
| FamilyName | RCMX-NR |
| Max. Depth Of Cut | 0.3940 |
| Insert Style | RCMX |
| Insert Shape | Round |
| Insert Thickness | 0.3130 |
| Weight (OZ) | 1.64374 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
