Iscar
5508521

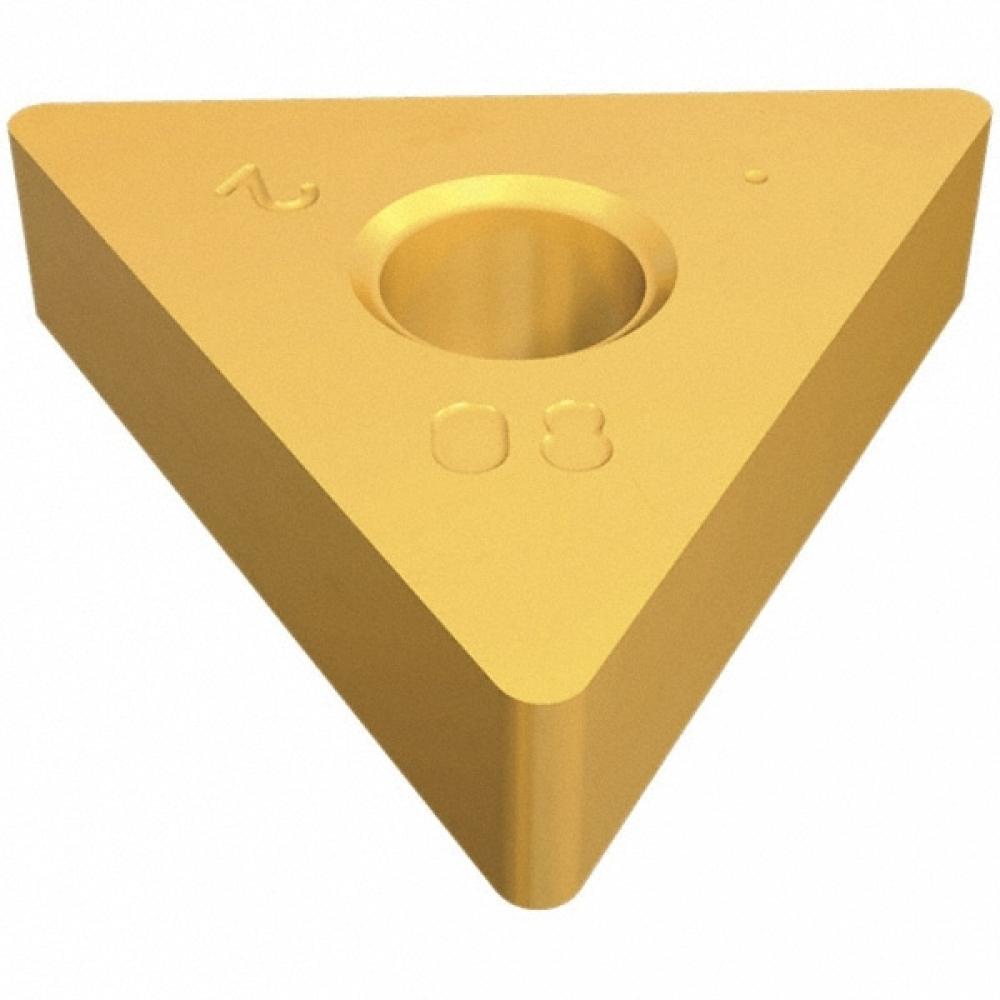

TNMA 433 IC5010
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | TNMA |
| Thickness (Inch) | 0.19 |
| Short Description | TNMA-433-IC5010 ISCAR SUMOTEC CVD INSERTS |
| Long Description | Double-sided triangular inserts with no chipformer for short chipping materials such as cast iron |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.87 |
| Minimum Depth of Cut (Decimal) | 0.06 |
| Maximum Depth of Cut (Decimal) | 0.2 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0470 |
| Family Short Description | Double-Sided Triangular Inserts with no Chipformer for Short Chipping Materials |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.55 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 60° Triangle 60° Approach |
| FamilyName | TNMA |
| Max. Depth Of Cut | 0.1970 |
| Insert Style | TNMA |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.54674 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
