Iscar
5509331

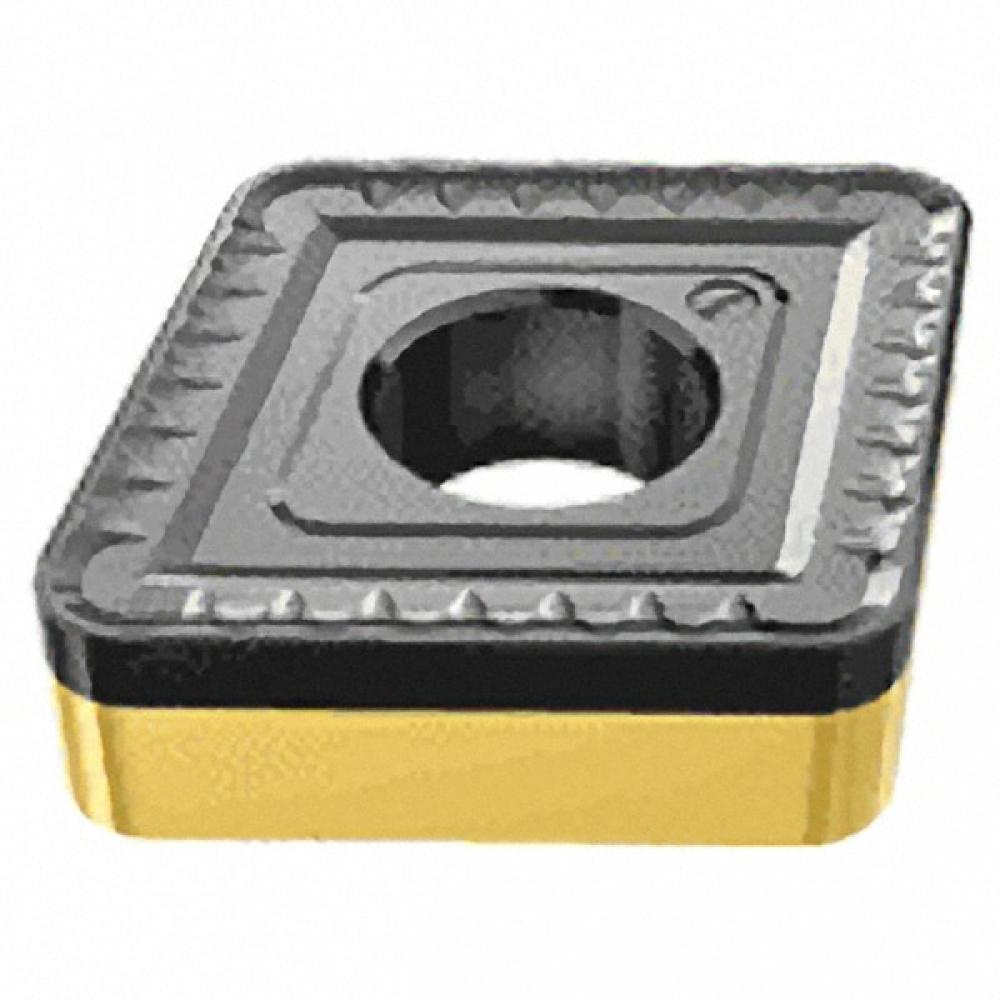

CNMM 646-H3P IC8150
Specifications
| Coating/Finish | TiCN+Al2O3+TiCN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.75 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.09 |
| Style | CNMM |
| Thickness (Inch) | 0.25 |
| Short Description | CNMM-646-H3P-IC8150 ISCAR SUMOTEC CVD INSERTS |
| Long Description | Single-sided, 80°, rhombic insert with a strong cutting edge. Used for extra rough turning in the windmill and shipbuilding industries. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.76 |
| Minimum Depth of Cut (Decimal) | 0.16 |
| Maximum Depth of Cut (Decimal) | 0.35 |
| Minimum Feed (Decimal) | 0.02 |
| Maximum Feed (Decimal) | 0.05 |
| Work Material | Steel+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Fine Finishing-Semi Roughing |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0940 |
| Family Short Description | Single-Sided 80° Rhombic Insert with a Strong Cutting Edge for Extra Rough Turning |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.99 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiCN+Al2O3+TiCN+TiN |
| APP1Name | Ext. 100° Diamond 75° Approach |
| FamilyName | CNMM-H3P |
| Max. Depth Of Cut | 0.3540 |
| Insert Style | CNMM |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.2500 |
| Weight (OZ) | 0.99471 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
