Iscar
5509366

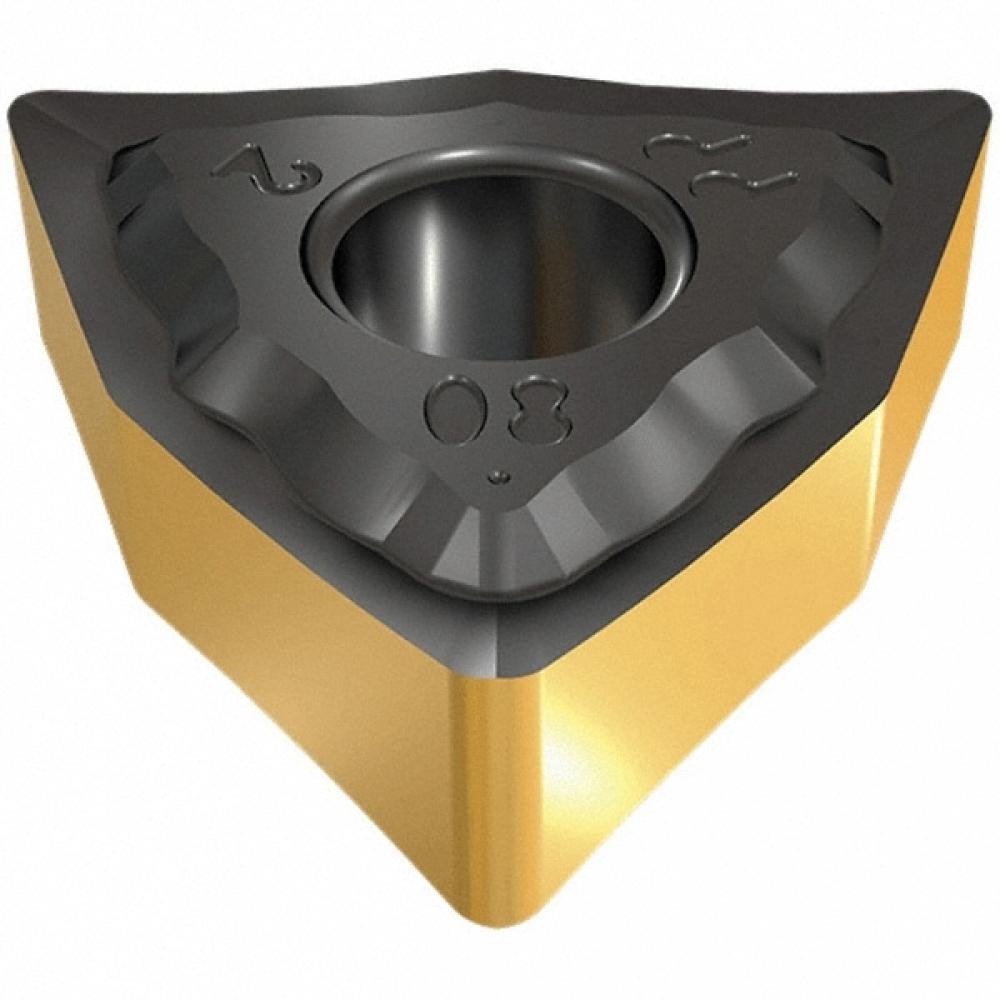

WNMG 432-PP IC6015
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | WNMG |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR WNMG-432-PP IC6015 INSERT |
| Long Description | Double-sided trigon inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Insert Edge Length (Decimal) | 0.34 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel |
| Clearance Angle | Negative |
| Machining Application | Fine Finishing-Medium |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided Trigon Inserts for Machining Very Ductile Materials under Medium Cutting Conditions |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.34 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WNMG-PP |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | WNMG |
| Insert Shape | 80° Trigon |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.33862 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
