Iscar
5510107

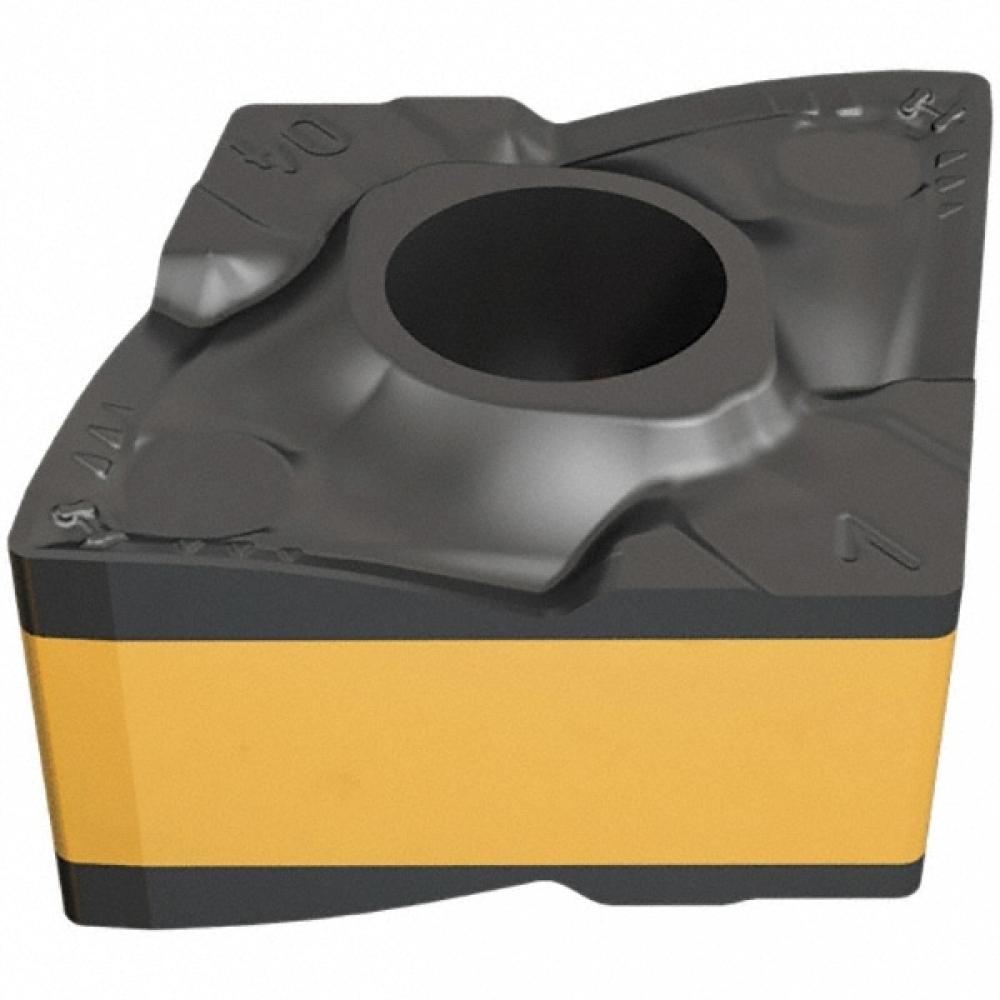

CNMX 451-M4MW IC806
Specifications
| Coating/Finish | AlTiN "SUMO TEC" |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | CNMX |
| Thickness (Inch) | 0.27 |
| Short Description | CNMX-451-M4MW-IC806 ISCAR LAY-DOWN (HT) INSERTS |
| Long Description | The inserts feature a very positive radial helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces high surface finish even at high feed rates. Used for heavy machining applications. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.51 |
| Minimum Depth of Cut (Decimal) | 0.03 |
| Maximum Depth of Cut (Decimal) | 0.2 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Hi Temp |
| Clearance Angle | Negative |
| Machining Application | Medium-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Double-Sided 80° Rhombic Inserts with a High Helical Cutting Edge for High Metal Removal Rates on Stainless Steel |
| Height | 0.63 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.52 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Ext. 80° Diamond 95° Approach |
| FamilyName | CNMX-M3/4MW |
| Max. Depth Of Cut | 0.1970 |
| Insert Style | CNMX |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.2670 |
| Weight (OZ) | 0.51852 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
