Iscar
5510113

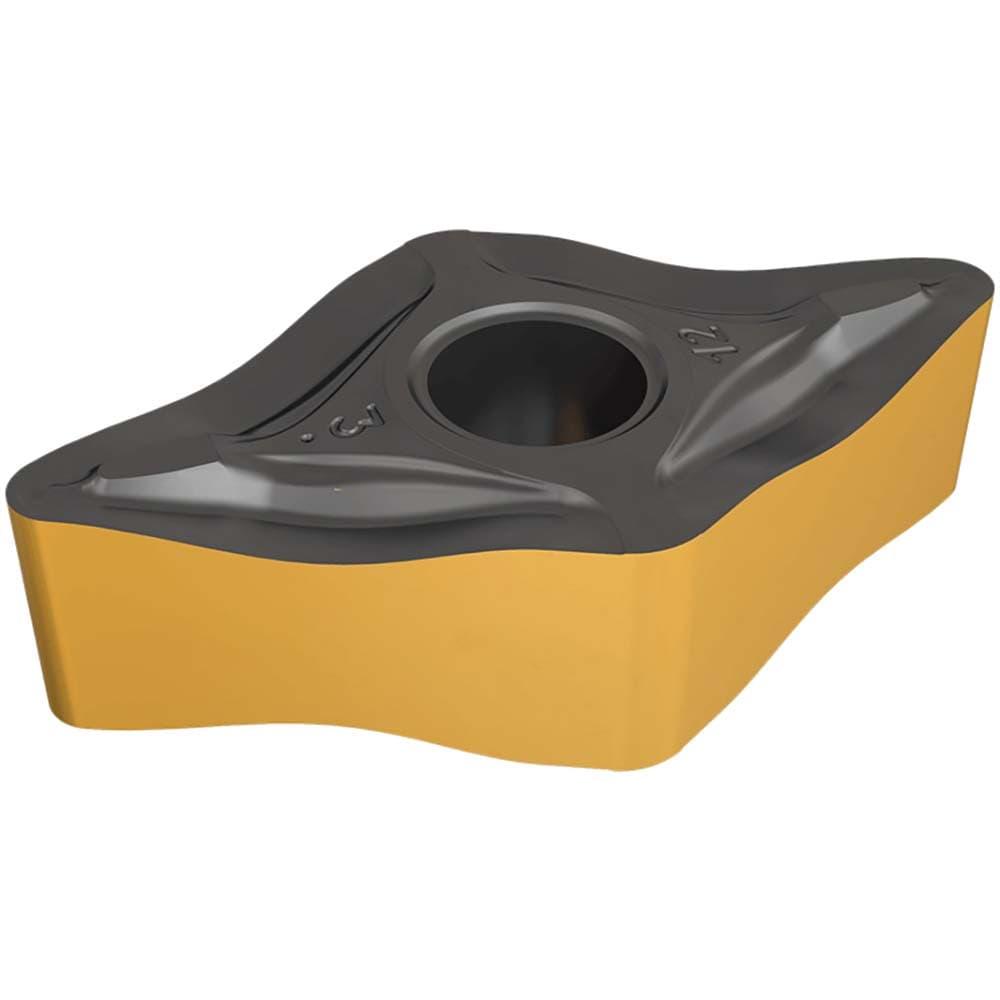

DNMX 442-M3P IC806
Specifications
| Coating/Finish | AlTiN "SUMO TEC" |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | DNMX |
| Thickness (Inch) | 0.25 |
| Short Description | ISCAR DNMX-442-M3P IC806 (HT) CARB INSERT |
| Long Description | The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces. Used for medium machining applications on steel. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.61 |
| Minimum Depth of Cut (Decimal) | 0.08 |
| Maximum Depth of Cut (Decimal) | 0.28 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Hi Temp |
| Clearance Angle | Negative |
| Machining Application | Medium-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided 55° Rhombic Inserts with High Helical Cutting Edge for High Metal Removal Rates |
| Height | 0.51 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.62 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Ext. 55° Diamond 62.5° Approac |
| FamilyName | DNMX-M3P |
| Max. Depth Of Cut | 0.2760 |
| Insert Style | DNMX |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.2500 |
| Weight (OZ) | 0.62434 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
