Iscar
5531816

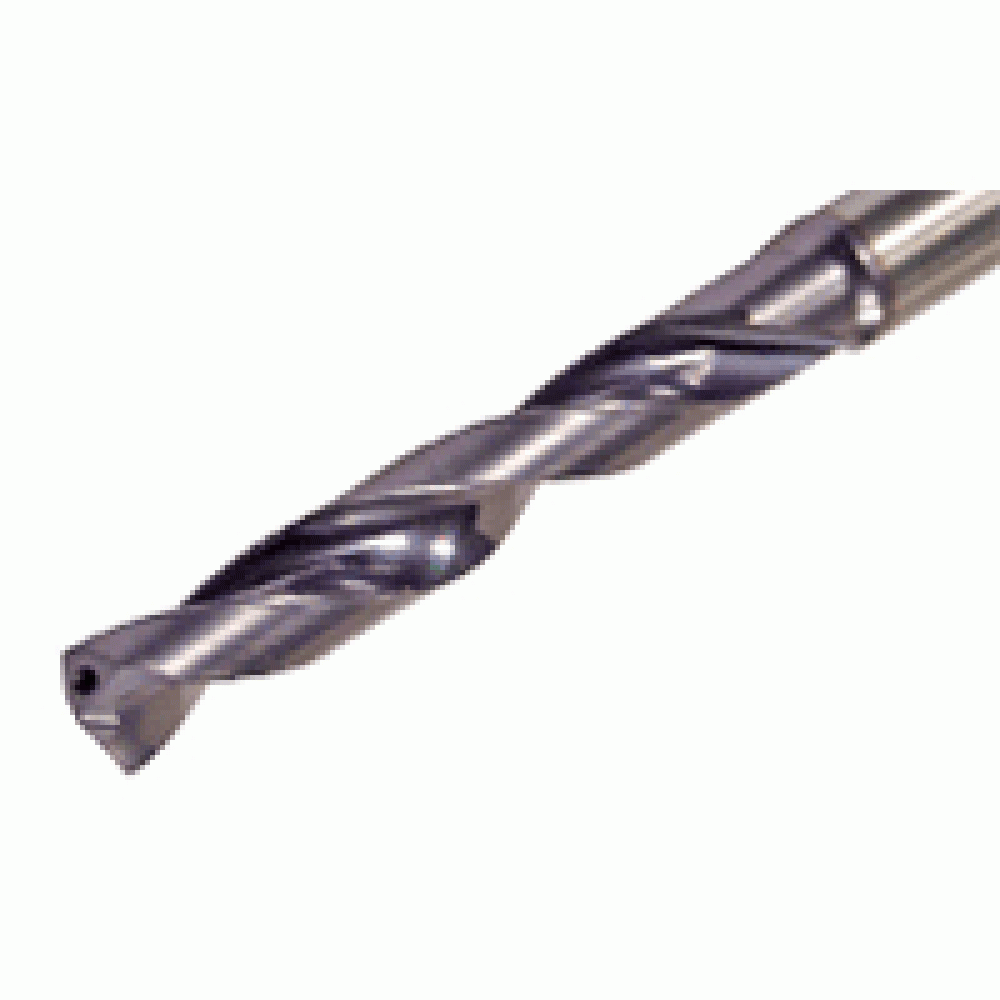

SCD 143-063-160 ACP5 IC908
Specifications
| Coating | TiAlN |
|---|---|
| Long Description | Solid carbide drills with coolant holes. Drilling depth 5xD. |
| Material | Carbide |
| Short Description | ISCAR SCD 143-063-160 ACP5 908 DRILL |
| Shank Diameter | 0.6299" (16.000 mm) |
| Flute Length | 3.2677" (83.000 mm) |
| APP1Name | Drilling |
| Overall Length | 5.2362" (133.000 mm) |
| FamilyName | SCD-ACP5 (5xD) |
| COO | Korea |
| Weight (OZ) | 9.17108 |
| Diameter | 0.5630" (14.300 mm) |
| Width (Inch) | 1.18 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
