Iscar
5531913

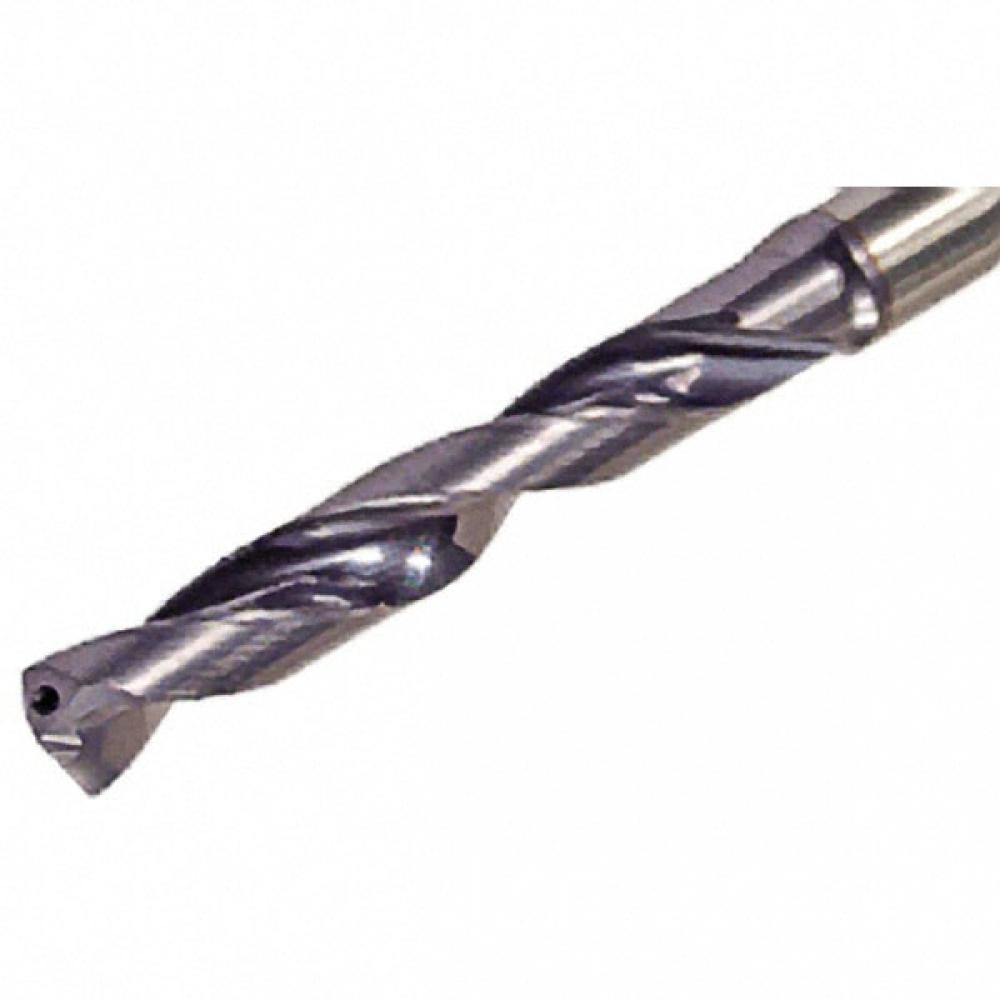

SCD 193-077-200 ACP5 IC908
Specifications
| Coating | TiAlN |
|---|---|
| Long Description | Solid carbide drills with coolant holes. Drilling depth 5xD. |
| Material | Carbide |
| Short Description | SCD-193-077-200-ACP5-908 ISCAR |
| Shank Diameter | 0.7874" (20.000 mm) |
| Flute Length | 3.9764" (101.000 mm) |
| APP1Name | Drilling |
| Overall Length | 6.0236" (153.000 mm) |
| FamilyName | SCD-ACP5 (5xD) |
| COO | Korea |
| Weight (OZ) | 23.10406 |
| Diameter | 0.7598" (19.300 mm) |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
