Iscar

5540005

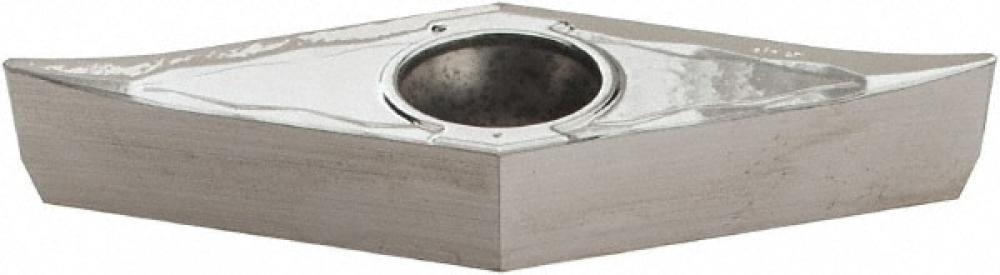

VCGT 331-AS IC20

Specifications

Coating/FinishUncoated
MaterialCarbide
Size0.38
Included Angle35 degrees
Corner Radius (Inch)0.02
StyleVCGT
Thickness (Inch)0.19
Short DescriptionISCAR VCGT-331-AS IC20 CARB INSERT R.016 FOR ALUM/NON-FERR
Long Description35° rhombic inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum.
Unit Of MeasureImperial
ShapeDiamond
Insert Edge Length (Decimal)0.65
Minimum Depth of Cut (Decimal)0.02
Maximum Depth of Cut (Decimal)0.12
Minimum Feed (Decimal)0.002
Maximum Feed (Decimal)0.01
Work MaterialStainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance Angle7 deg Positive
Machining ApplicationFinishing-Medium
Country of OriginKorea
Base Item NumberTurning Indexable Inserts
Corner Radius0.0160
Family Short Description35° Rhombic Inserts with a 7° Positive Flank, Very Positive Rake Angle and Sharp Cutting Edge for Machining Aluminum
Height0.59 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.36 OZ
Width2.24 Inch
Insert CoatingUncoated
APP1NameExt. 35° Diamond 112° Approach
FamilyNameVCGT-AS
Max. Depth Of Cut0.1180
Insert StyleVCGT
Insert Shape35° Diamond
Insert Thickness0.1870
Weight (OZ)0.35908
Width (Inch)2.24
Cutting Edge MaterialCarbide
Measurement TypeInch
