Iscar

5540017

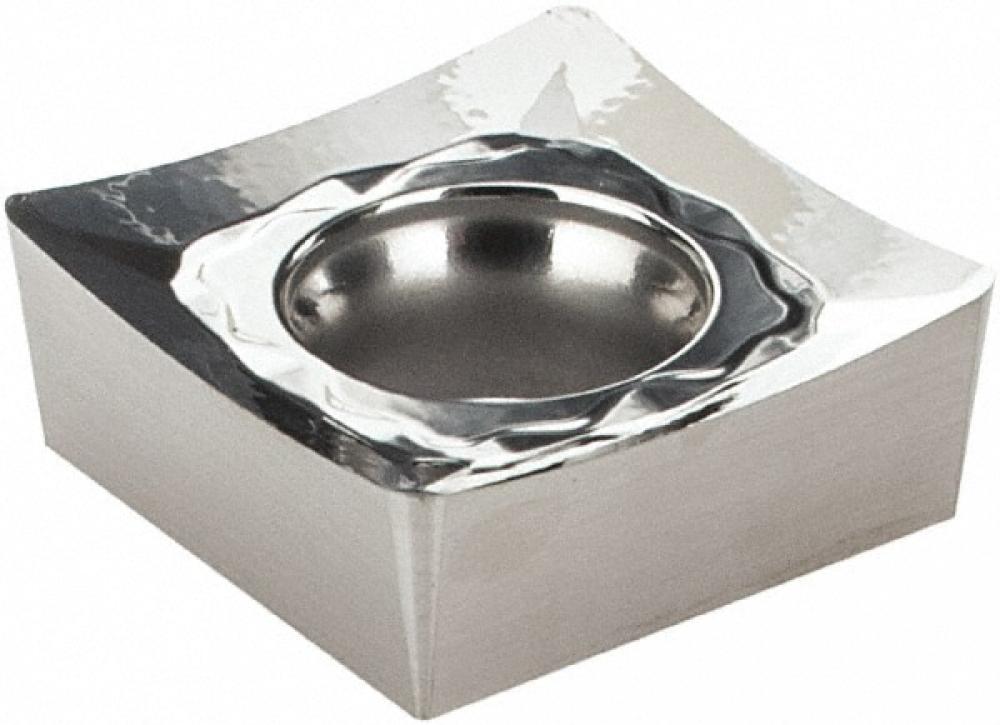

SCGT 432-AS IC20

Specifications

Coating/FinishUncoated
MaterialCarbide
Size0.5
Included Angle90 degrees
Corner Radius (Inch)0.03
StyleSCGT
Thickness (Inch)0.19
Short DescriptionSCGT-432-AS-IC20 ISCAR TURNING INSERTS FOR ALUMINUM
Long DescriptionSquare inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum
Unit Of MeasureImperial
ShapeSquare
Insert Edge Length (Decimal)0.5
Minimum Depth of Cut (Decimal)0.04
Maximum Depth of Cut (Decimal)0.16
Minimum Feed (Decimal)0.0039
Maximum Feed (Decimal)0.01
Work MaterialStainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance Angle7 deg Positive
Machining ApplicationFinishing-Medium
Country of OriginKorea
Base Item NumberTurning Indexable Inserts
Corner Radius0.0310
Family Short DescriptionSquare Inserts with a 7° Positive Flank, Very Positive Rake Angle and Sharp Cutting Edge for Machining Aluminum
Height0.51 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.29 OZ
Width1.61 Inch
Insert CoatingUncoated
APP1NameExt. 90° Square 45° Approach
FamilyNameSCGT-AS
Max. Depth Of Cut0.1570
Insert StyleSCGT
Insert Shape90° Square
Insert Thickness0.1870
Weight (OZ)0.28501
Width (Inch)1.61
Cutting Edge MaterialCarbide
Measurement TypeInch
