IBC Member Market

Iscar

5540021

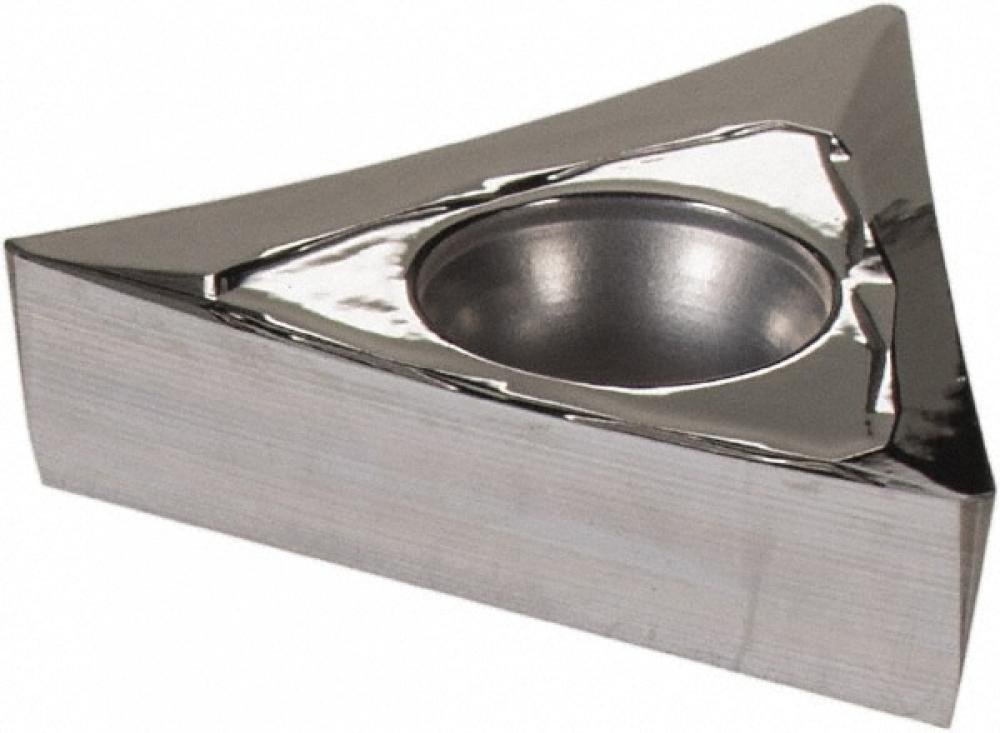

TCGT 3-1-AS IC20

Specifications

Coating/FinishUncoated
MaterialCarbide
Size0.38
Included Angle60 degrees
Corner Radius (Inch)0.02
StyleTCGT
Thickness (Inch)0.16
Short DescriptionISCAR TCGT-3-1-AS IC20 INSERT
Long DescriptionTriangular inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum.
Unit Of MeasureImperial
ShapeTriangle
Insert Edge Length (Decimal)0.65
Minimum Depth of Cut (Decimal)0.02
Maximum Depth of Cut (Decimal)0.12
Minimum Feed (Decimal)0.002
Maximum Feed (Decimal)0.01
Work MaterialStainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance Angle7 deg Positive
Machining ApplicationFinishing-Medium
Country of OriginKorea
Base Item NumberTurning Indexable Inserts
Corner Radius0.0160
Family Short DescriptionTriangular Inserts with a 7° Positive Flank, Very Positive Rake Angle and Sharp Cutting Edge for Machining Aluminum
Height0.51 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.20 OZ
Width1.61 Inch
Insert CoatingUncoated
APP1NameExt. 60° Triangle 91° Approach
FamilyNameTCGT-AS
Max. Depth Of Cut0.1180
Insert StyleTCGT
Insert Shape60° Triangle
Insert Thickness0.1560
Weight (OZ)0.20459
Width (Inch)1.61
Cutting Edge MaterialCarbide
Measurement TypeInch
