Iscar

5540029

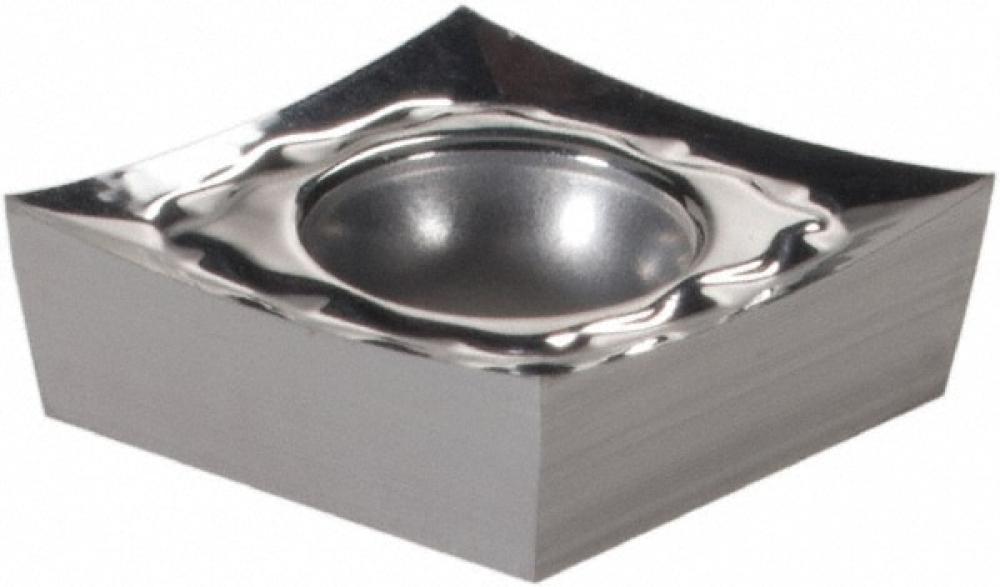

CCGT 2-.004-AS IC20

Specifications

Coating/FinishUncoated
MaterialCarbide
Size0.25
Included Angle80 degrees
StyleCCGT
Thickness (Inch)0.09
Short DescriptionCCGT-2.004-AS-IC20 ISCAR INSERT
Long Description80° rhombic inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum.
Unit Of MeasureImperial
ShapeDiamond
Insert Edge Length (Decimal)0.25
Minimum Depth of Cut (Decimal)0.02
Maximum Depth of Cut (Decimal)0.08
Minimum Feed (Decimal)0.0039
Maximum Feed (Decimal)0.01
Work MaterialStainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous
Clearance Angle7 deg Positive
Machining ApplicationFinishing-Medium
Country of OriginKorea
Base Item NumberTurning Indexable Inserts
Corner Radius0.0040
Family Short Description80° Rhombic Inserts with a 7° Positive Flank, Very Positive Rake Angle and Sharp Cutting Edge for Machining Aluminum
Height0.47 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.07 OZ
Width1.69 Inch
Insert CoatingUncoated
APP1NameExt. 80° Diamond 91° Approach
FamilyNameCCGT-AS
Max. Depth Of Cut0.0790
Insert StyleCCGT
Insert Shape80° Diamond
Insert Thickness0.0940
Weight (OZ)0.07055
Width (Inch)1.69
Cutting Edge MaterialCarbide
Measurement TypeInch
