IBC Member Market

Iscar

5550234

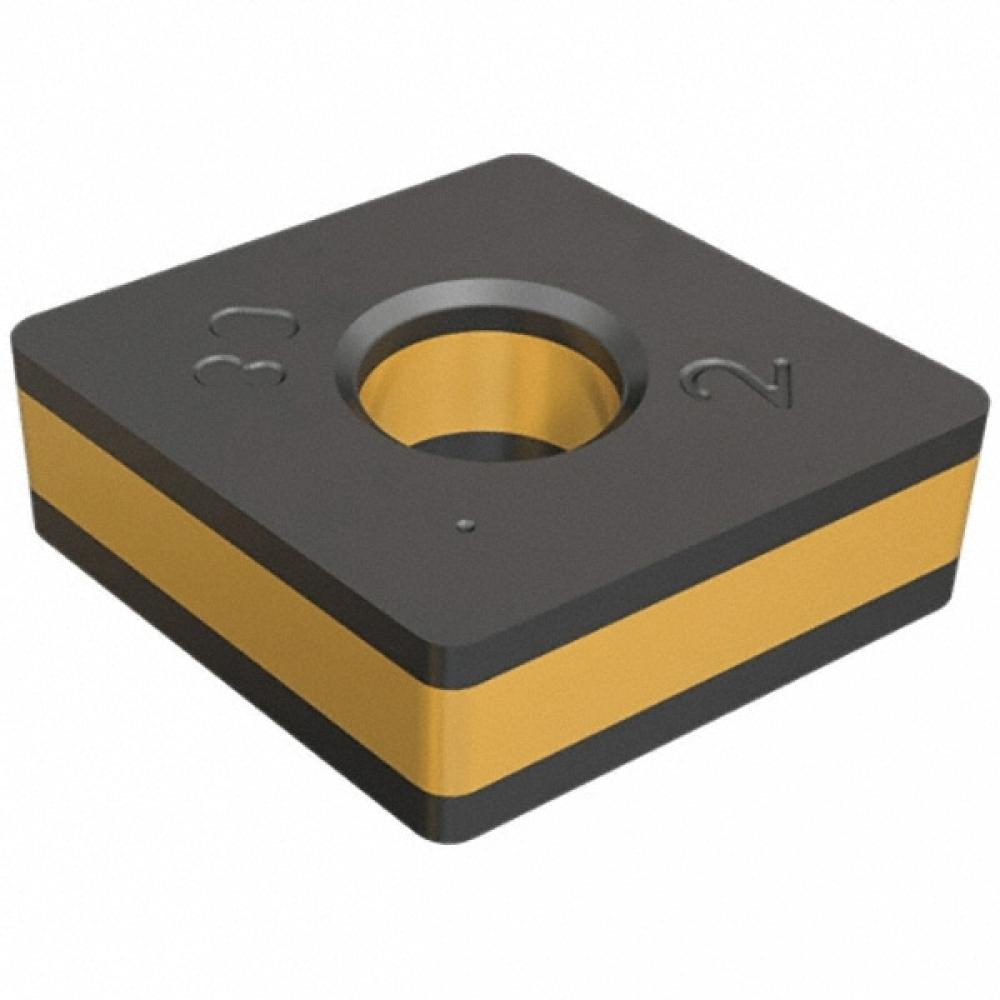

CNMA 432F IC807

Specifications

Coating/FinishTiAlN+TiN
MaterialCarbide
Size0.5
Included Angle80 degrees
Corner Radius (Inch)0.03
StyleCNMA
Thickness (Inch)0.19
Short DescriptionCNMA-432F-IC807 ISCAR SUMOTEC PVD INSERTS
Long DescriptionDouble-sided 80° rhombic inserts, used for short chipping materials such as cast iron.
Unit Of MeasureImperial
ShapeDiamond
Insert Edge Length (Decimal)0.51
Minimum Depth of Cut (Decimal)0.04
Maximum Depth of Cut (Decimal)0.16
Minimum Feed (Decimal)0.002
Maximum Feed (Decimal)0.02
Work MaterialStainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron
Clearance AngleNegative
Machining ApplicationFinishing-Semi Roughing
Country of OriginIsrael
Base Item NumberTurning Indexable Inserts
Corner Radius0.0310
Family Short DescriptionDouble-Sided 80° Rhombic Inserts for Short Chipping Materials such as Cast Iron
Height0.39 Inch
Product TypeIndustrial Supplies
Unit of MeasureImperial
Weight0.40 OZ
Width1.57 Inch
Insert CoatingTiAlN+TiN
APP1NameExt. 100° Diamond 75° Approach
FamilyNameCNMA
Max. Depth Of Cut0.1570
Insert StyleCNMA
Insert Shape80° Diamond
Insert Thickness0.1870
Weight (OZ)0.39859
Width (Inch)1.57
Cutting Edge MaterialCarbide
Measurement TypeInch
