Iscar
5550246

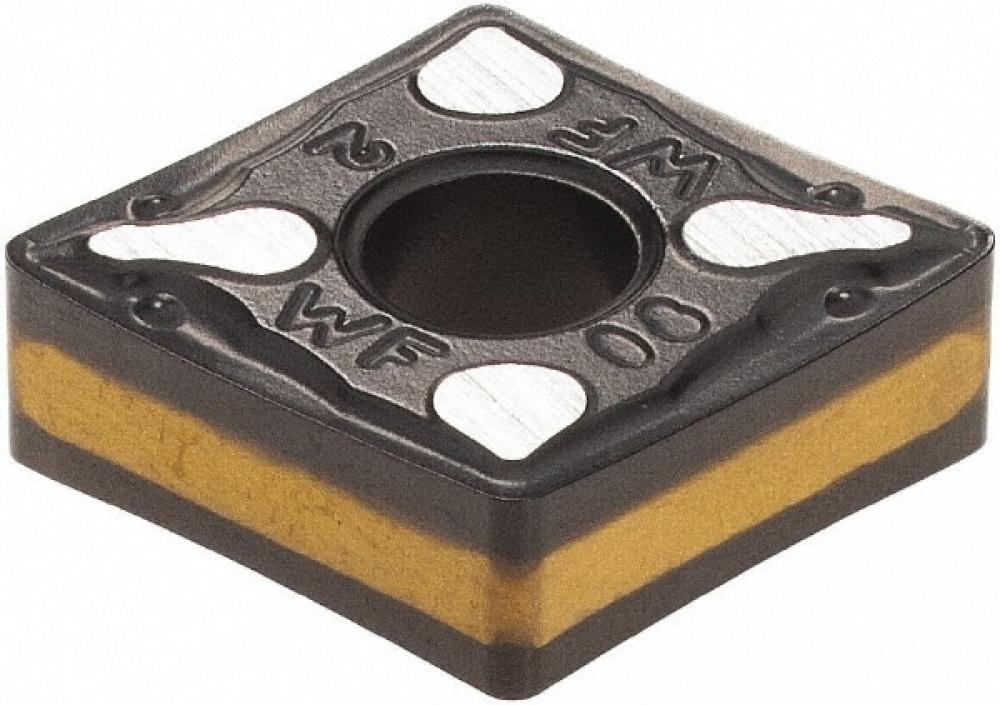

CNMG 432-WF IC8250
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | CNMG |
| Thickness (Inch) | 0.19 |
| Short Description | CNMG-432-WF IC8250 ISCAR INSERT |
| Long Description | Double-sided 80° rhombic wiper inserts, used for finishing operations at high feeds. Three to five times better surface finish compared to standard turning inserts at the same feeds. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.51 |
| Minimum Depth of Cut (Decimal) | 0.03 |
| Maximum Depth of Cut (Decimal) | 0.14 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided 80° Rhombic Wiper Inserts for Finishing Operations at High Feeds |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.36 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 100° Diamond 75° Approach |
| FamilyName | CNMG-WF |
| Max. Depth Of Cut | 0.1380 |
| Insert Style | CNMG |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.35979 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
