Iscar
5550354

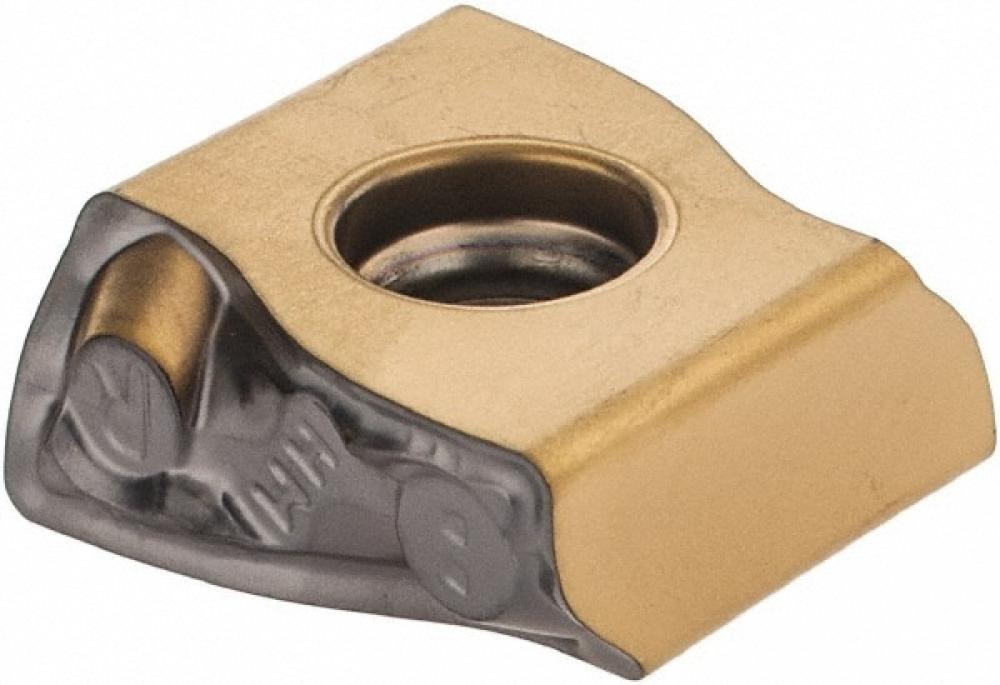

LNMX 150608R-HM IC807
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Corner Radius (Inch) | 0.03 |
| Style | LNMX |
| Thickness (Inch) | 0.53 |
| Short Description | LNMX-150608R-HM-IC807 ISCAR INSERT |
| Long Description | Tangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on stainless steel, high temperature alloys and soft, low carbon steel. |
| Unit Of Measure | Imperial |
| Shape | Tangential |
| Insert Edge Length (Decimal) | 0.59 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.24 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Tangential Inserts with a Positive Rake Angle for High Metal Removal on Soft and Ductile Materials |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.54 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Ext. Tangential 93° Approach |
| FamilyName | LNMX-HM |
| Max. Depth Of Cut | 0.2360 |
| Insert Style | LNMX |
| Insert Shape | Tangential |
| Insert Thickness | 0.5280 |
| Weight (OZ) | 0.53968 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
