Iscar
5550391

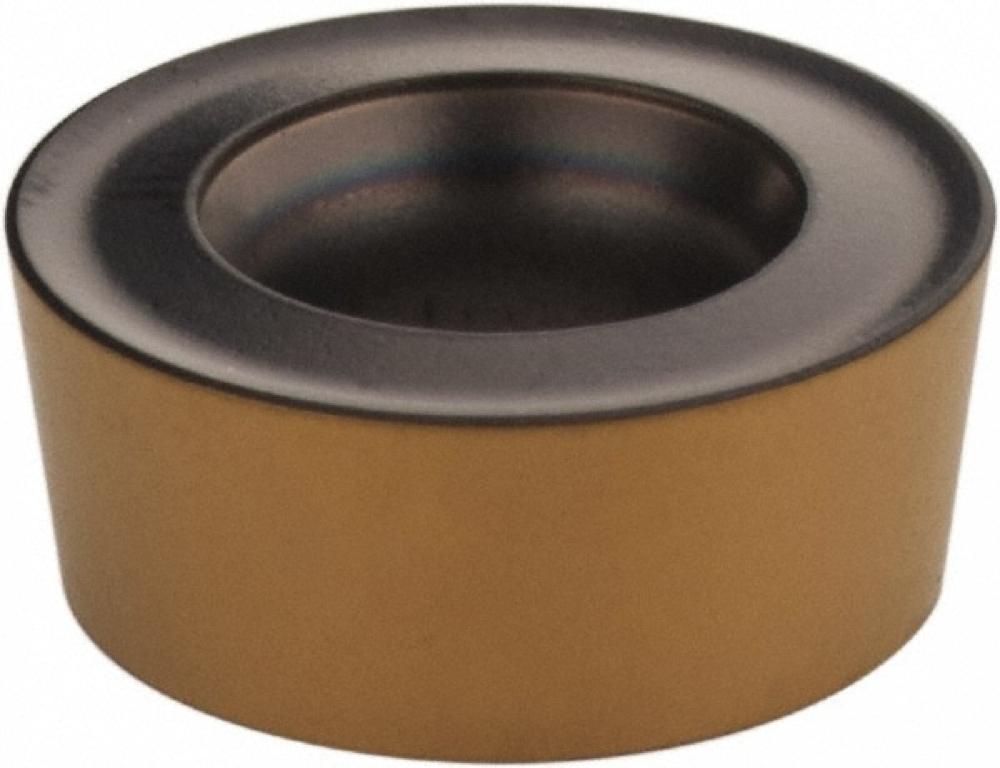

RCMT 1204M0-14 IC807
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.47 |
| Style | RCMT |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR RCMT-1204M0-14 IC807 CARB INSERT |
| Long Description | Round inserts with a 7° positive flank for medium and finish profiling on a wide range of materials. |
| Unit Of Measure | Imperial |
| Shape | Round |
| Minimum Depth of Cut (Decimal) | 0.06 |
| Maximum Depth of Cut (Decimal) | 0.24 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron |
| Clearance Angle | 7 deg Positive |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Round Inserts with a 7° Positive Flank for Medium and Finish Profiling on a Wide Range of Materials |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.23 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Ext. Round Face & Turn |
| FamilyName | RCMT-14 |
| Max. Depth Of Cut | 0.2360 |
| Insert Style | RCMT |
| Insert Shape | Round |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.2328 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
