Iscar
5550550

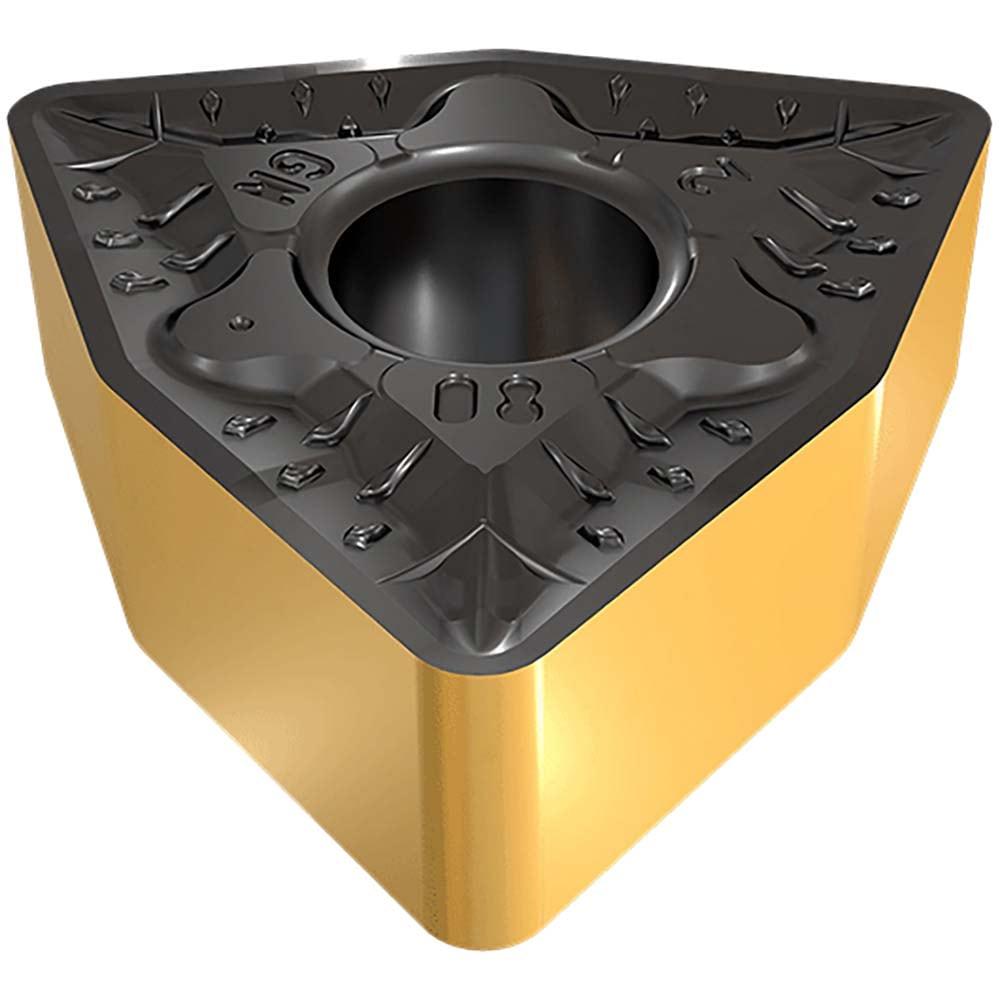

WNMG 434-GN IC8250
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | WNMG |
| Short Description | WNMG-434-GN-IC8250 ISCAR SUMOTEC CVD INSERTS |
| Long Description | Double-sided trigon insert, secure cutting edge, for medium- and semi-roughing on steel and cast iron. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Double-Sided Trigon Inserts for General Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.36 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WNMG-GN |
| Insert Style | WNMG |
| Insert Shape | 80° Trigon |
| Weight (OZ) | 0.36332 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
