Iscar
5566788

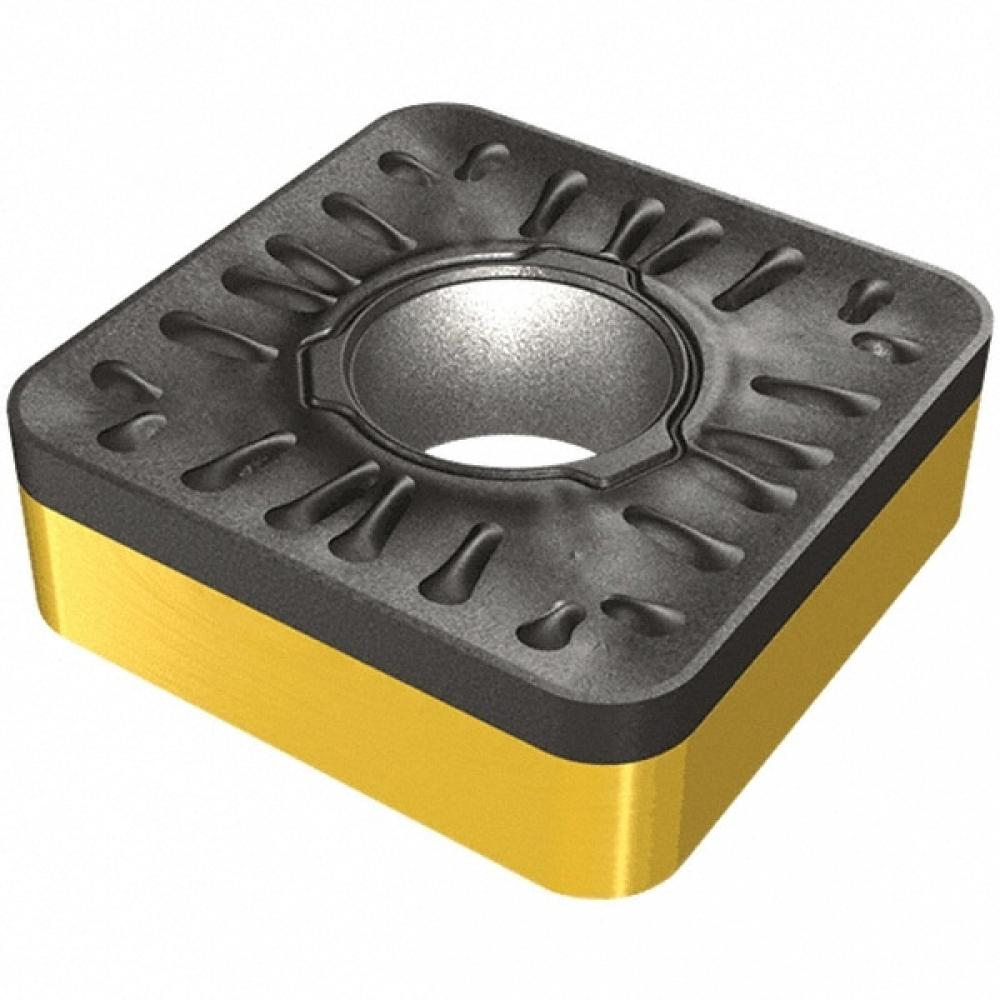

SNMM 544-R3P IC8150
Specifications
| Coating/Finish | TiCN+Al2O3+TiCN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.63 |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.06 |
| Style | SNMM |
| Thickness (Inch) | 0.25 |
| Short Description | SNMM-544-R3P-IC8150 ISCAR SUMOTEC CVD INSERTS |
| Long Description | Single-sided square inserts for rough turning applications on steel. |
| Unit Of Measure | Imperial |
| Shape | Square |
| Minimum Depth of Cut (Decimal) | 0.1 |
| Maximum Depth of Cut (Decimal) | 0.37 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.04 |
| Work Material | Steel+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Fine Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0630 |
| Family Short Description | Single-Sided Square Inserts for Rough Turning Applications on Steel |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.73 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiCN+Al2O3+TiCN+TiN |
| APP1Name | Ext. 90° Square 45° Approach |
| FamilyName | SNMM-R3P |
| Max. Depth Of Cut | 0.3740 |
| Insert Style | SNMM |
| Insert Shape | 90° Square |
| Insert Thickness | 0.2500 |
| Weight (OZ) | 0.73369 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
