Iscar
5566882

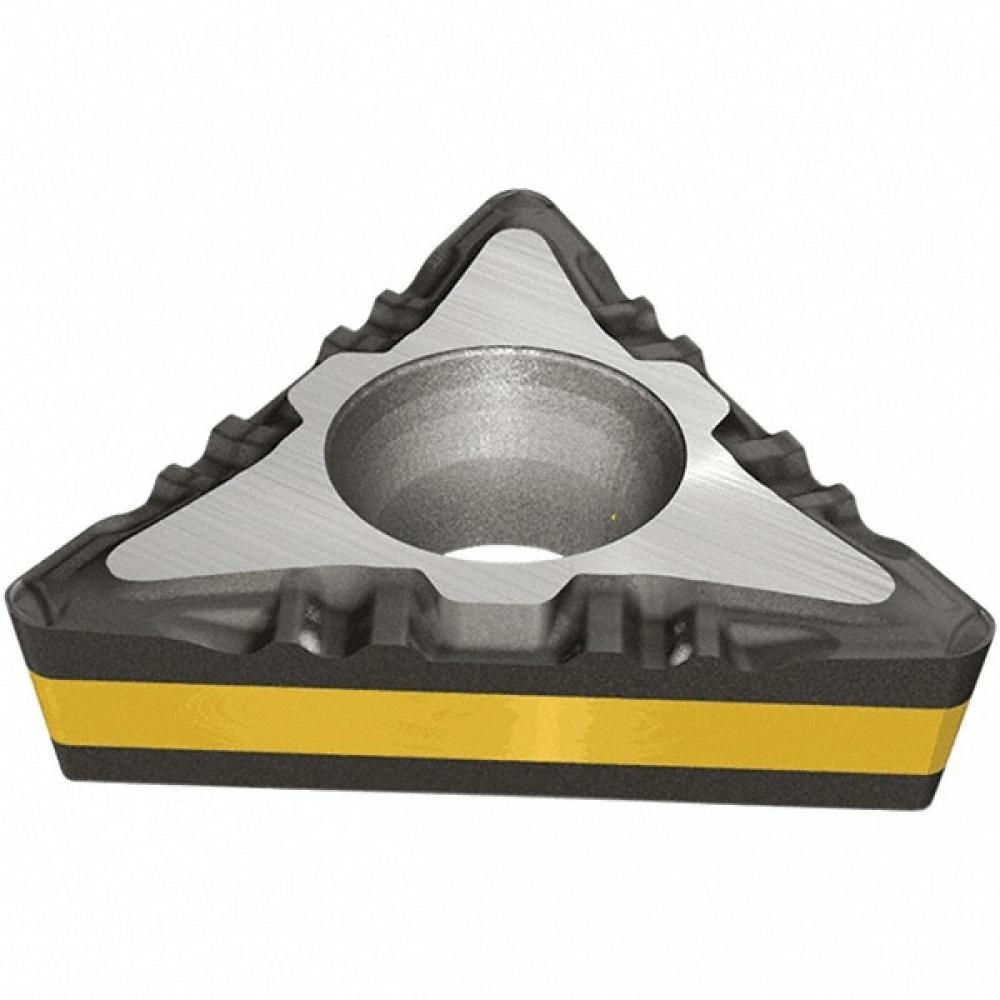

TCMT 2-0-F3P IC8150
Specifications
| Coating/Finish | TiCN+Al2O3+TiCN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | TCMT |
| Thickness (Inch) | 0.09 |
| Short Description | ISCAR TCMT-2-0-F3P-IC8150 |
| Long Description | Triangular positive flank inserts for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life. |
| Unit Of Measure | Imperial |
| Shape | Square |
| Insert Edge Length (Decimal) | 0.43 |
| Maximum Depth of Cut (Decimal) | 0.07 |
| Minimum Feed (Decimal) | 0.0012 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Steel+Cast Iron |
| Clearance Angle | 7 deg Positive |
| Machining Application | Fine Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0080 |
| Family Short Description | Triangular Inserts with a Positive Flank for Semi-Finishing and Finish Turning on Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.09 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiCN+TiN |
| APP1Name | Ext. 60° Triangle 91° Approach |
| FamilyName | TCMT-F3P |
| Max. Depth Of Cut | 0.0670 |
| Insert Style | TCMT |
| Insert Shape | 90° Square |
| Insert Thickness | 0.0940 |
| Weight (OZ) | 0.09171 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
