Iscar
5566965

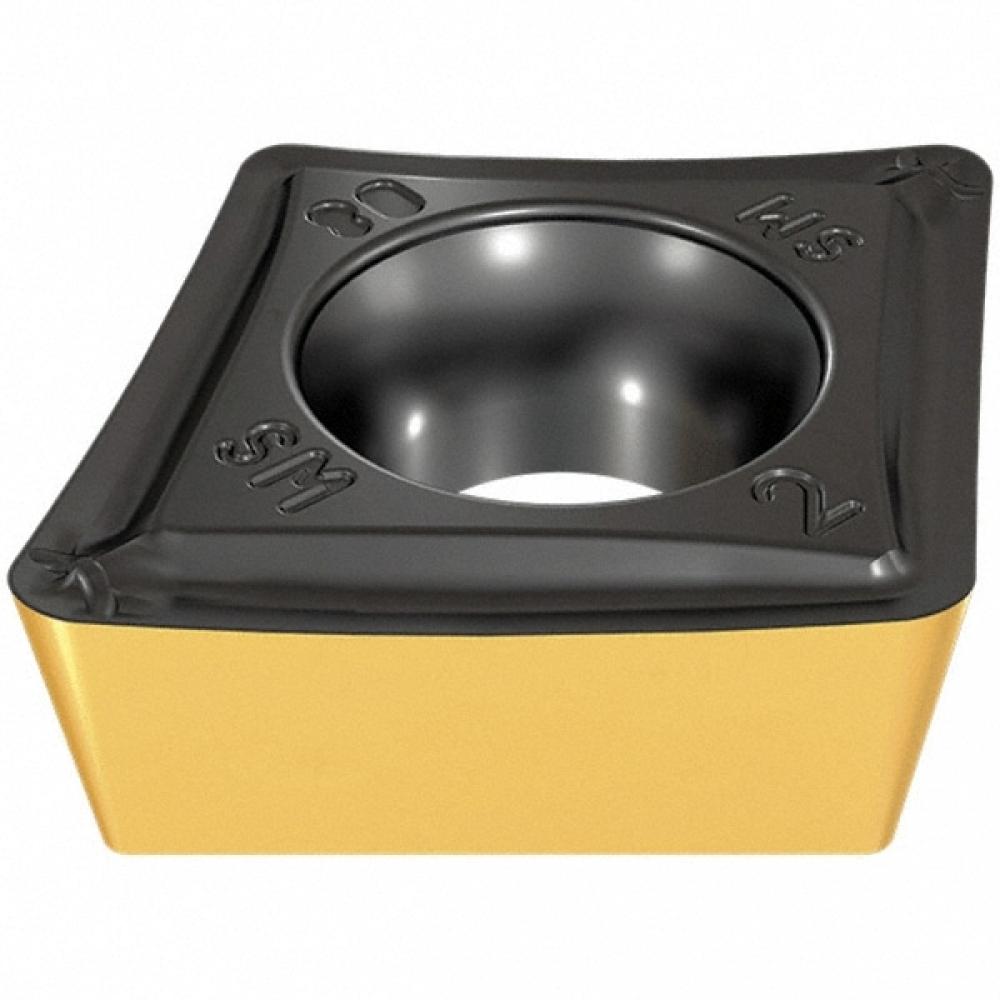

CCMT 432-SM IC6025
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | CCMT |
| Thickness (Inch) | 0.19 |
| Short Description | CCMT-432-SM-IC6025 ISCAR SUMOTEC CVD INSERTS |
| Long Description | Single-sided turning inserts for semi finishing and finishing. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for soft materials and exotic alloys. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.51 |
| Minimum Depth of Cut (Decimal) | 0.03 |
| Maximum Depth of Cut (Decimal) | 0.14 |
| Minimum Feed (Decimal) | 0.0028 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel |
| Clearance Angle | 7 deg Positive |
| Machining Application | Semi Finishing-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Single-Sided Turning Inserts for Semi-Finishing and Finishing on Soft Materials and Exotic Alloys |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.34 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 80° Diamond 91° Approach |
| FamilyName | CCMT/CCGT-SM |
| Max. Depth Of Cut | 0.1380 |
| Insert Style | CCMT |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.3351 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
