Iscar
5567098

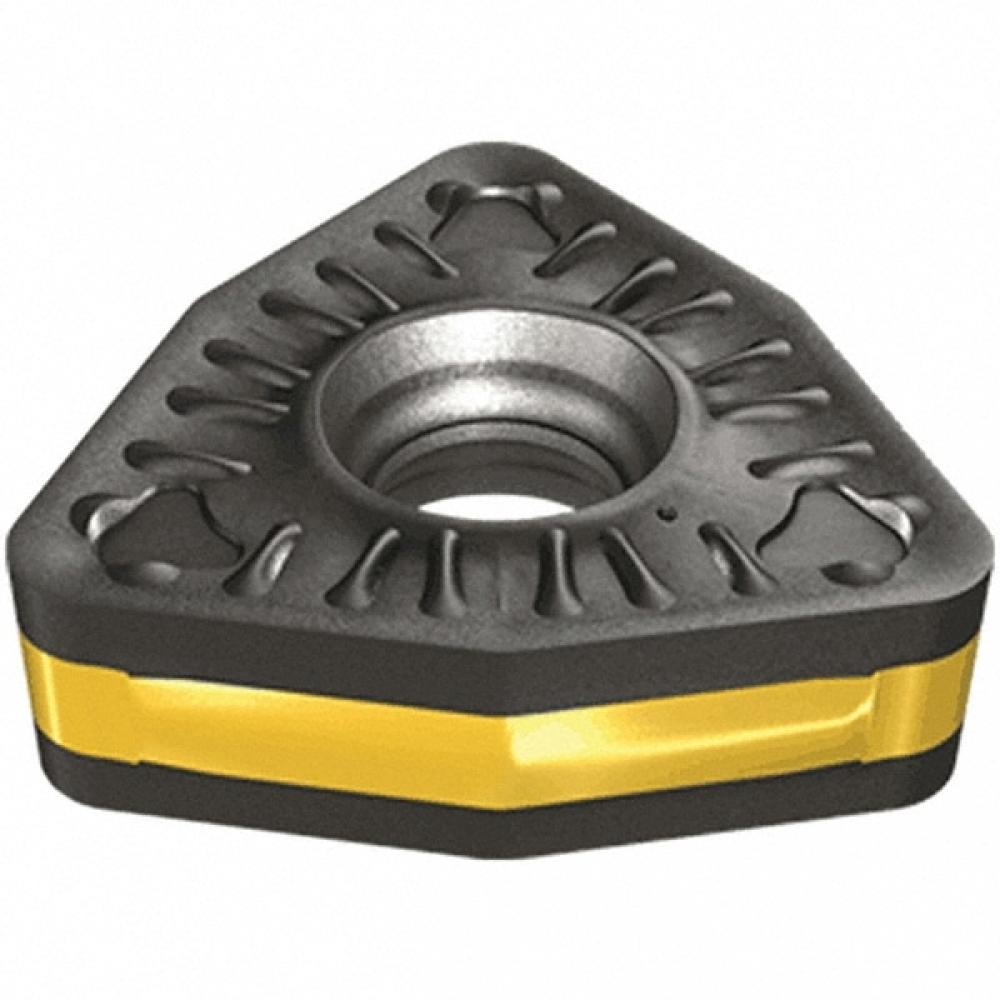

WOMG 643-R3P-IQ IC8250
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Size | 0.75 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | WOMG |
| Thickness (Inch) | 0.25 |
| Short Description | WOMG-643-R3P-IQ-IC8250 ISCAR |
| Long Description | Double-sided 7° negative side flank trigon inserts for heavy turning of steel. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Insert Edge Length (Decimal) | 0.51 |
| Minimum Depth of Cut (Decimal) | 0.14 |
| Maximum Depth of Cut (Decimal) | 0.32 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.03 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0470 |
| Family Short Description | Double-Sided 7° Negative Side Flank Trigon Inserts for Heavy Turning of Steel |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.11 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WOMG-6-R3P-IQ |
| Max. Depth Of Cut | 0.3150 |
| Insert Style | WOMG |
| Insert Shape | 80° Trigon |
| Insert Thickness | 0.2500 |
| Weight (OZ) | 1.11111 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
