Iscar
5567417

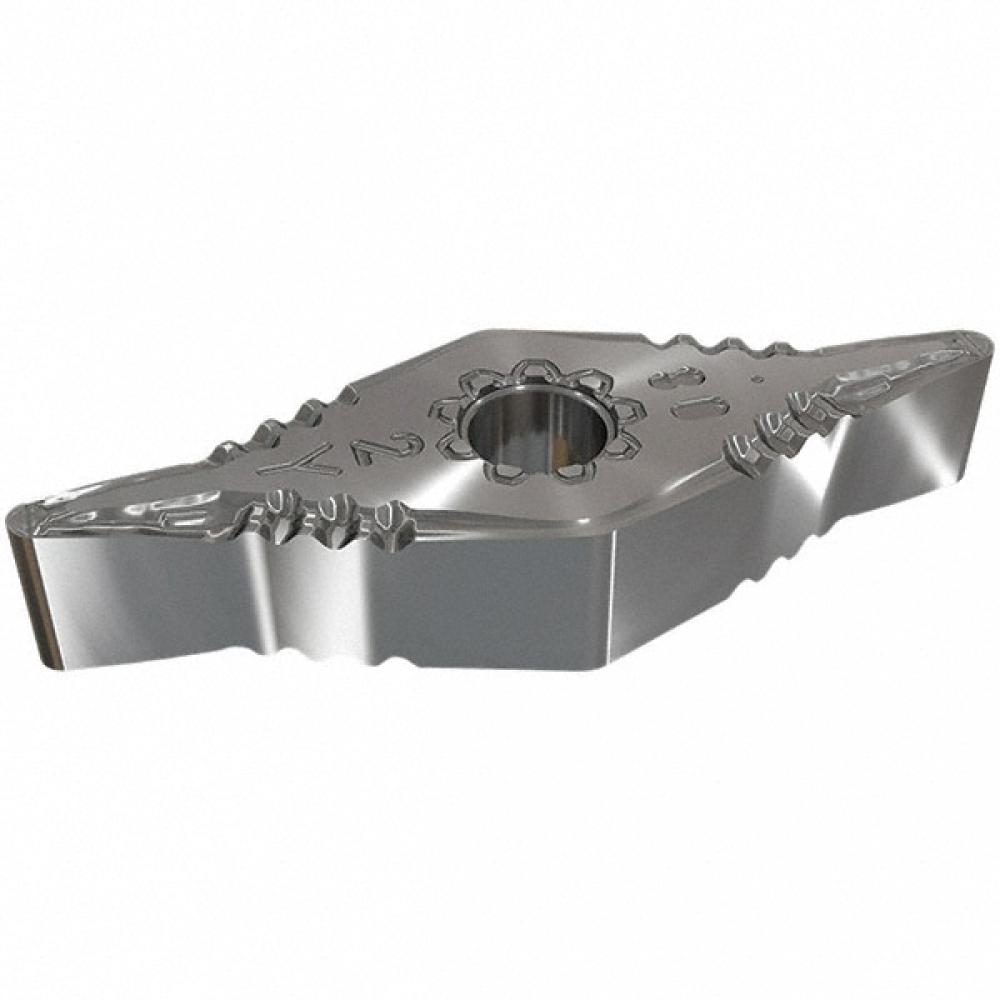

YNMG 332-F3P IC8150
Specifications
| Coating/Finish | TiCN+Al2O3+TiCN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 25 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | YNMG |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR YNMG-332-F3P IC8150 INSERT |
| Long Description | Double-sided 25° corner inserts for internal and external deep and narrow profiling and undercutting |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.65 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Steel+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Fine Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided 25° Corner Inserts for Internal and External Deep and Narrow Profiling and Undercutting |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.40 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiCN+Al2O3+TiCN+TiN |
| APP1Name | Ext. 35° Diamond 72.5° Approac |
| FamilyName | YNMG-F3P |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | YNMG |
| Insert Shape | 25° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.39859 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
