Iscar
5567596

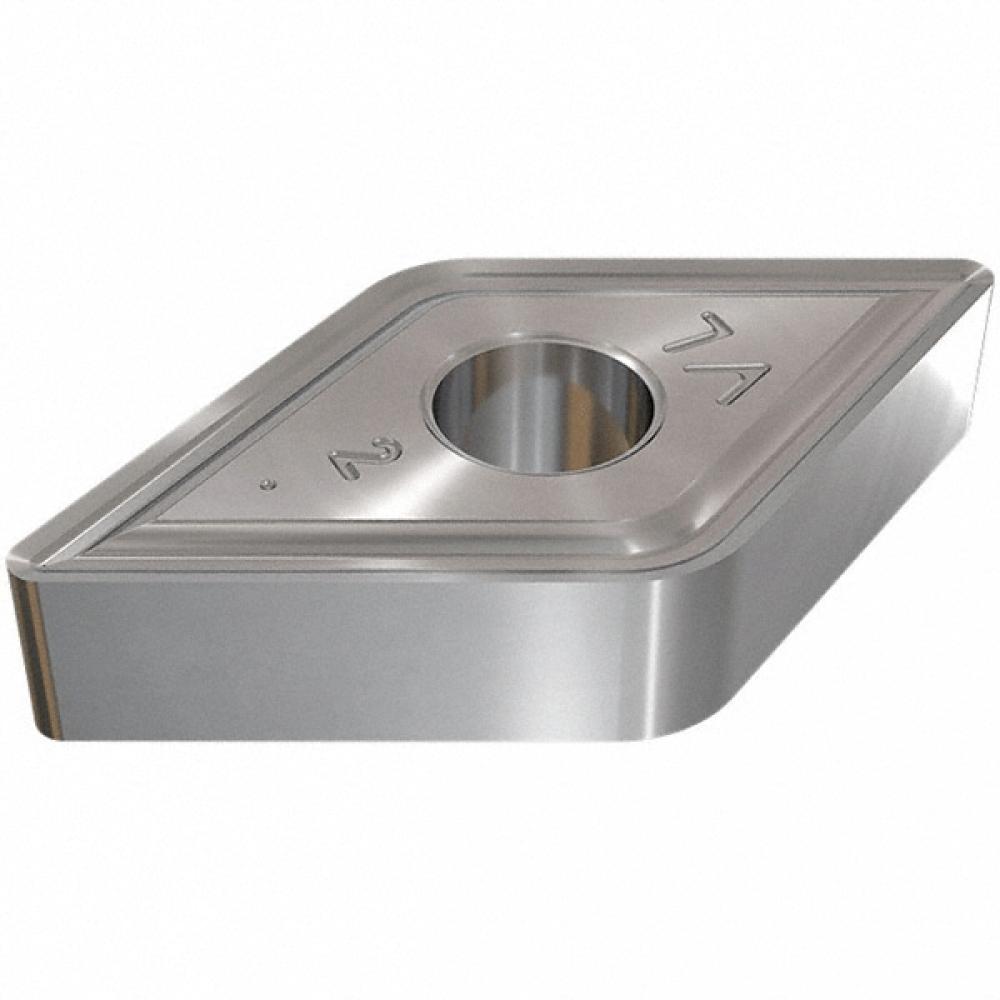

DNMG 331-VL IC806
Specifications
| Coating/Finish | AlTiN "SUMO TEC" |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | DNMG |
| Thickness (Inch) | 0.19 |
| Short Description | DNMG-331-VL-IC806 ISCAR |
| Long Description | The VL chipformer is used for high temperature alloys and stainless steel (originally designed for machining valves). Can be used for facing, longitudinal turning and profiling in roughing and finishing conditions. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.46 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.14 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Hi Temp |
| Clearance Angle | Negative |
| Machining Application | Medium-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Double-Sided 55° Rhombic Inserts with a Chipformer for High Temperature Alloys and Stainless Steel Valves |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.28 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Ext. 55° Diamond 62.5° Approac |
| FamilyName | DNMG-VL |
| Max. Depth Of Cut | 0.1380 |
| Insert Style | DNMG |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.27866 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
