Iscar
5568611

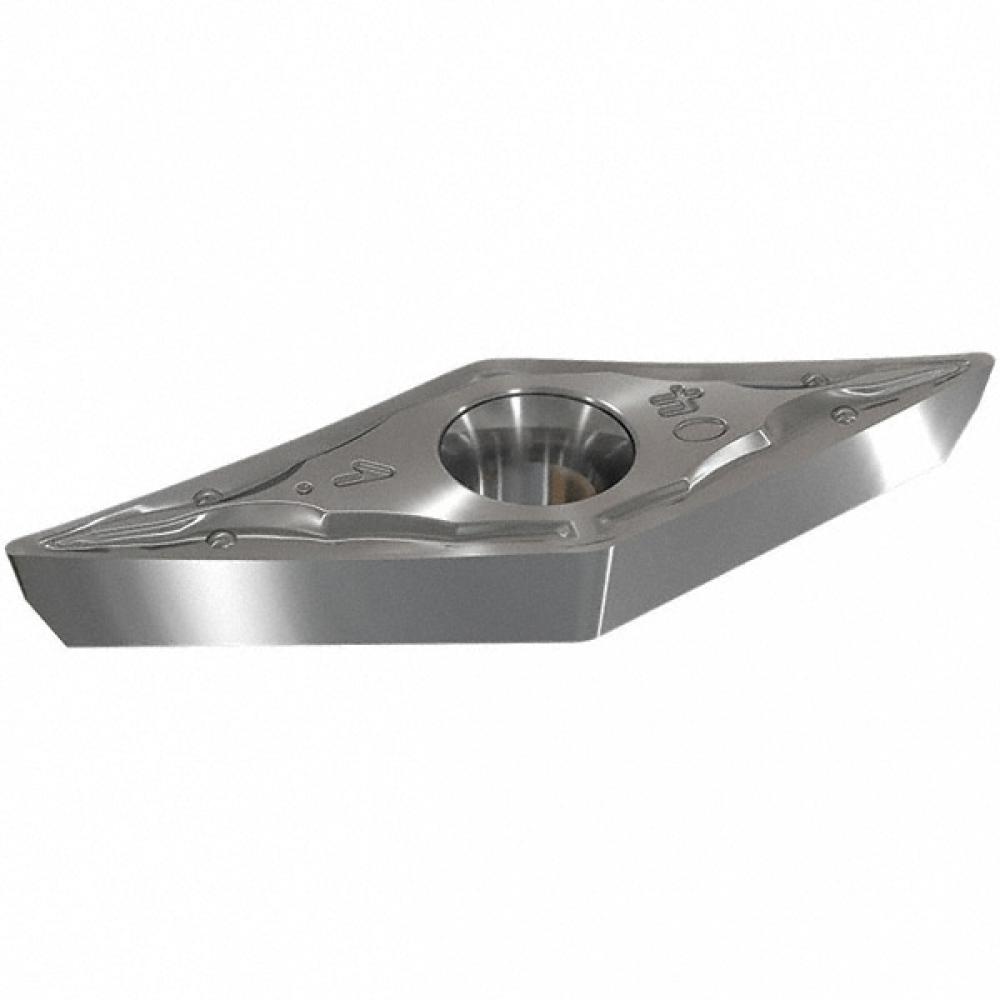

VCGT 130304-PF IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.31 |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | VCGT |
| Thickness (Inch) | 0.13 |
| Short Description | ISCAR INSERT VCGT 130304-PF-IC830 |
| Long Description | 35° rhombic 7° positive flank inserts. Used for semi-finish and finish applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.51 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp |
| Clearance Angle | 7 deg Positive |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | 35° Rhombic Inserts with a Positive Flank for Semi-Finishing and Finishing on Soft Materials and Exotic Alloys |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.23 OZ |
| Width | 2.20 Inch |
| Insert Coating | AlTiN+TiN |
| APP1Name | Ext. 35° Diamond 112° Approach |
| FamilyName | VCGT-MD/PF |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | VCGT |
| Insert Shape | 35° Diamond |
| Insert Thickness | 0.1250 |
| Weight (OZ) | 0.22928 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
