Iscar
5568991

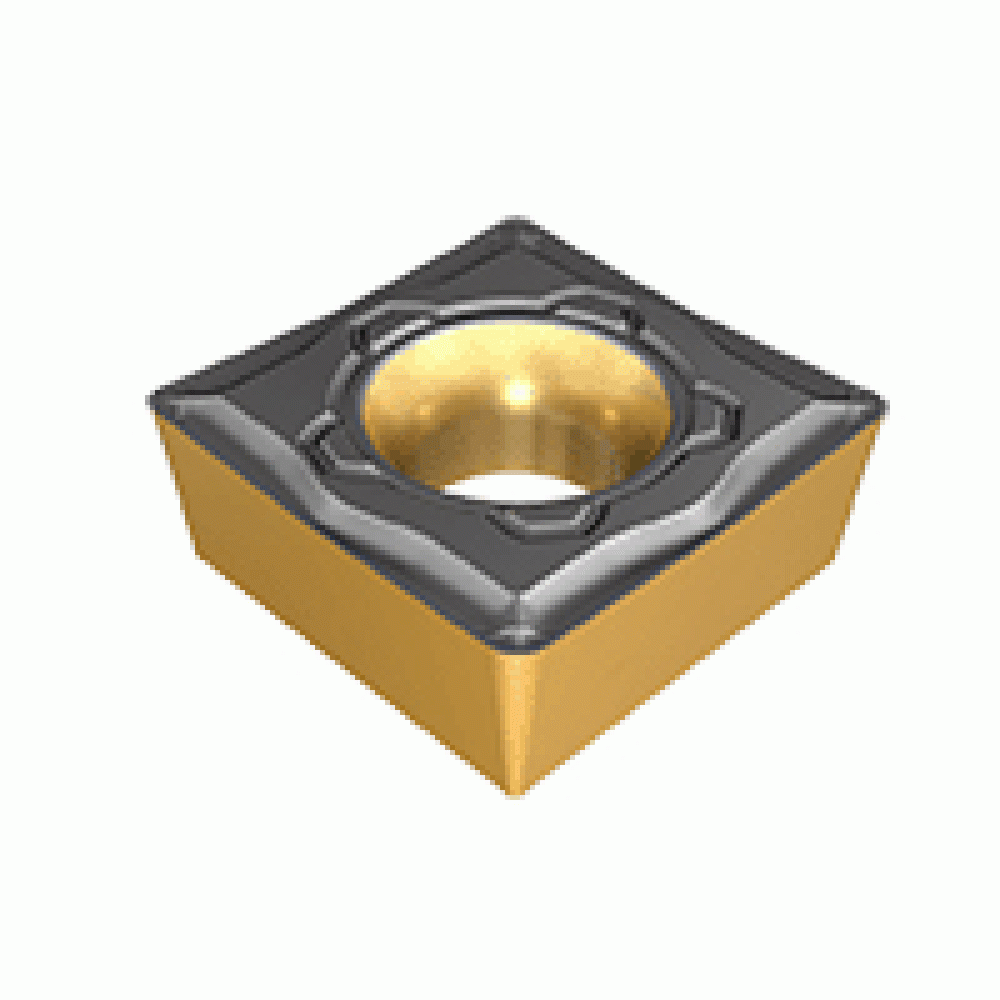

SCMT 431-M3P IC8250
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 90 degrees |
| Style | SCMT |
| Short Description | ISCAR SCMT-431-M3P-IC8250 |
| Long Description | Square positive flank inserts for medium machining conditions on steel. |
| Unit Of Measure | Imperial |
| Shape | Square |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Square Positive Flank Inserts for Medium Machining Conditions on Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.33 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 90° Square 45° Approach |
| FamilyName | SCMT-M3P |
| Weight (OZ) | 0.32804 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
