Iscar
5569103

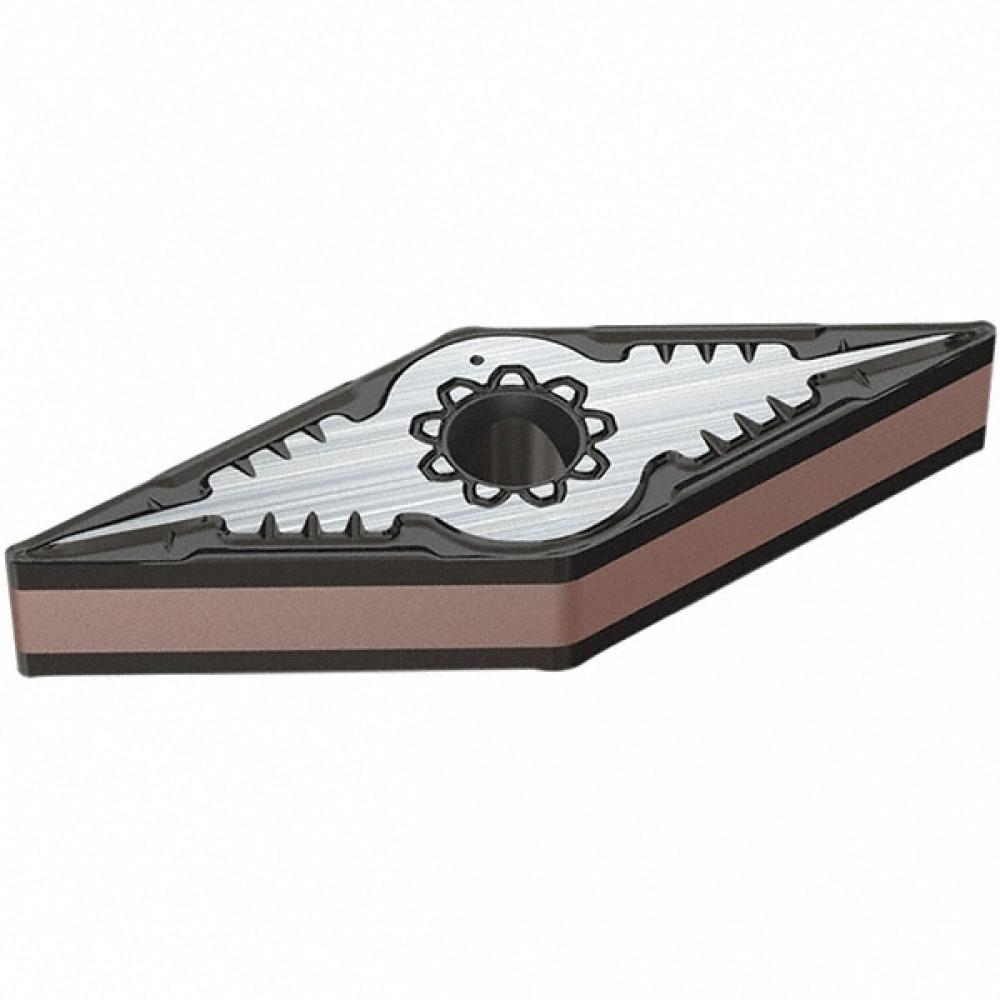

VNMG 332-F3M IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | VNMG |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR VNMG-332-F3M-IC830 |
| Long Description | Double-sided 35° rhombic insert for semi-finishing and finishing on stainless steel. Low cutting forces due to very sharp edge and positive rake. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.65 |
| Maximum Depth of Cut (Decimal) | 0.06 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp |
| Clearance Angle | Negative |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided 35° Rhombic Inserts for Finishing on Stainless Steel |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.43 OZ |
| Width | 2.20 Inch |
| Insert Coating | AlTiN+TiN |
| APP1Name | Ext. 35° Diamond 72.5° Approac |
| FamilyName | VNMG-F3M |
| Max. Depth Of Cut | 0.0590 |
| Insert Style | VNMG |
| Insert Shape | 35° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.43034 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
