Iscar
5569186

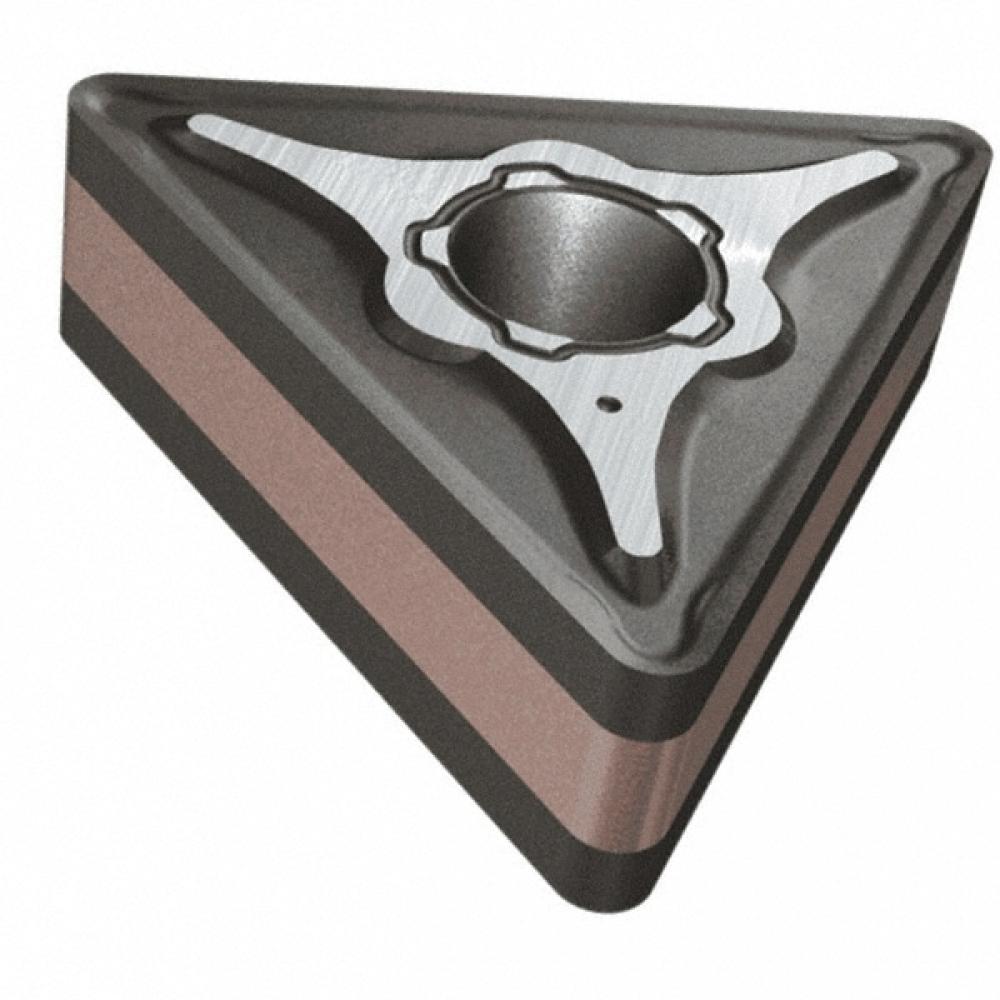

TNMG 332-M3M IC804
Specifications
| Coating/Finish | AlTiN "SUMO TEC" |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | TNMG |
| Thickness (Inch) | 0.19 |
| Short Description | TNMG-332-M3M-IC804 ISCAR CARBIDE INSERT |
| Long Description | Double-sided triangular inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.65 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Hi Temp |
| Clearance Angle | Negative |
| Machining Application | Finishing-Medium |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided Triangular Inserts for Machining Stainless and Low Carbon Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.31 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Ext. 60° Triangle 60° Approach |
| FamilyName | TNMG-M3M |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | TNMG |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.30688 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
