Iscar
5590342

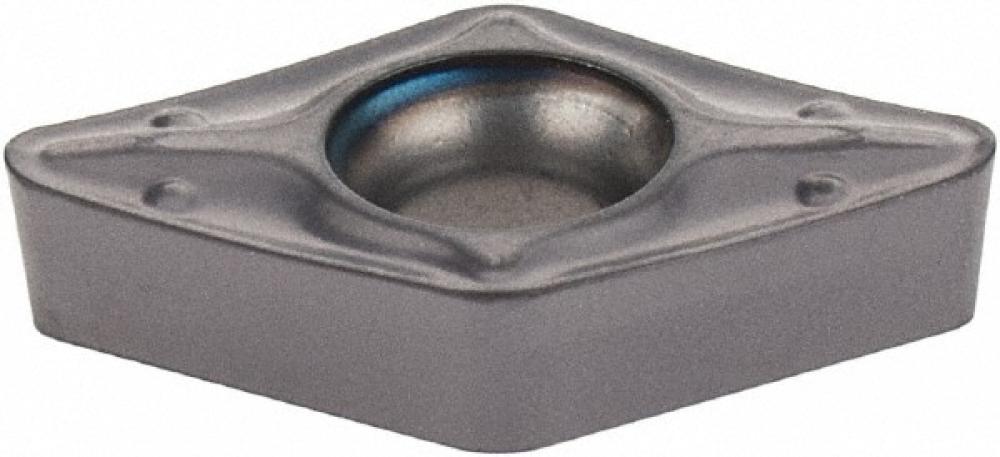

DCMT 2-2-PF IC907
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.25 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | DCMT |
| Thickness (Inch) | 0.09 |
| Short Description | ISCAR DCMT-2-2-PF IC907 CARB INSERT |
| Long Description | 55° rhombic 7° positive flank inserts. Used for semi-finish and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.3 |
| Minimum Depth of Cut (Decimal) | 0.03 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.0031 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous |
| Clearance Angle | 7 deg Positive |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | 55° Rhombic Inserts with a Positive Flank for Semi-Finish and Finishing on Soft Materials and Exotic Alloys |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.09 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Ext. 55° Diamond 107.5° Appr. |
| FamilyName | DCMT/DCGT-PF |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | DCMT |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.0940 |
| Weight (OZ) | 0.08818 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
